Step1: Product

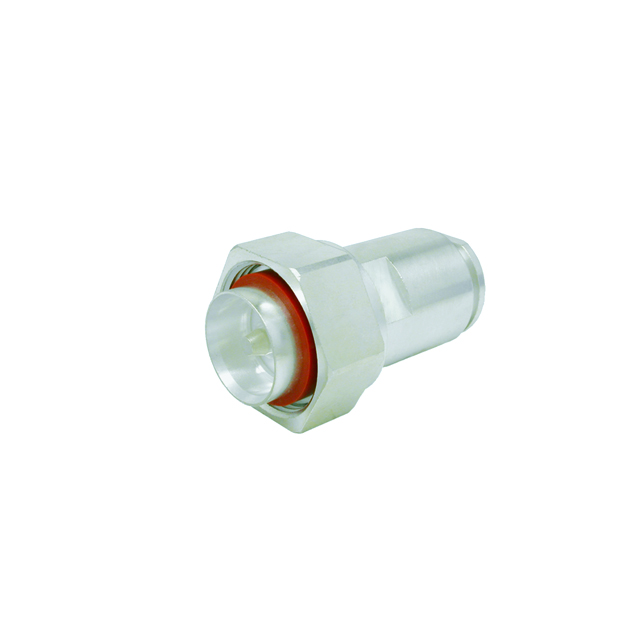

Amphenol Times Microwave Systems TC-600-716M-X
Image shown is a representation only
Manufacturer
Manufacturer No
TC-600-716M-X
Packaging
Bag
Description
7/16 DIN MALE CRIMP CONNECTOR (S
Detailed Description
7/16 DIN Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
DataSheet
Mfr
Amphenol Times Microwave Systems
Series
TC
Impedance
50 Ohms
Packaging
Bag
Body Finish
White Bronze
Cable Group
LMR-600
Part Status
Active
Body Material
Brass
Housing Color
Silver
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pin
Fastening Type
Threaded
Insertion Loss
0.05dB
Connector Style
7/16 DIN
Frequency - Max
6 GHz
Number of Ports
1
Ingress Protection
IP67 - Dust Tight, Waterproof
Shield Termination
Crimp
Base Product Number
TC-600
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-40°C ~ 85°C
Center Contact Plating
Silver
Center Contact Material
Beryllium Copper, Brass
| Attribute | Value |
|---|---|
| Mfr | Amphenol Times Microwave Systems |
| Series | TC |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | White Bronze |
| Cable Group | LMR-600 |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Silver |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pin |
| Fastening Type | Threaded |
| Insertion Loss | 0.05dB |
| Connector Style | 7/16 DIN |
| Frequency - Max | 6 GHz |
| Number of Ports | 1 |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Shield Termination | Crimp |
| Base Product Number | TC-600 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -40°C ~ 85°C |
| Center Contact Plating | Silver |
| Center Contact Material | Beryllium Copper, Brass |
