Step1: Product
Amphenol SV Microwave SF1621-60036

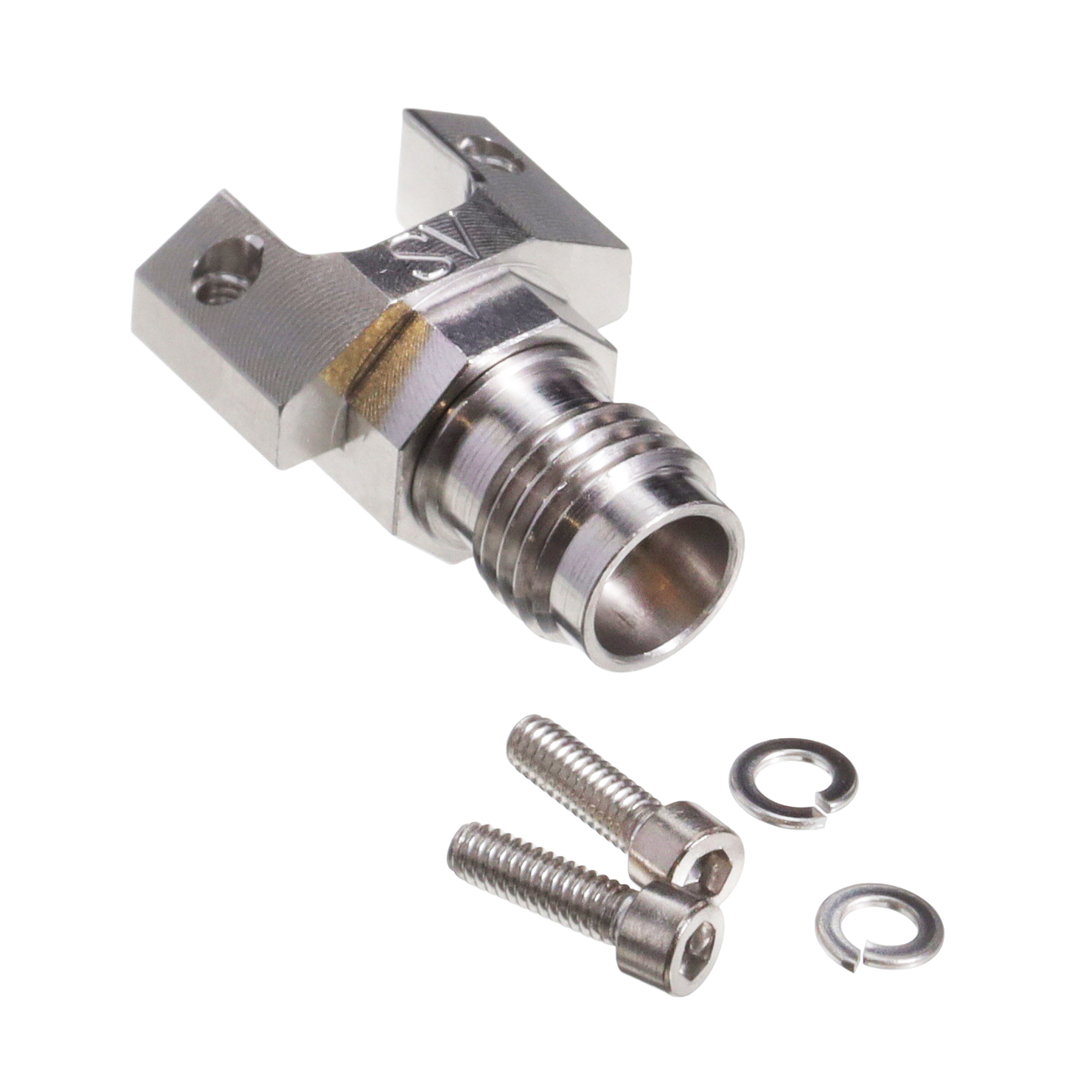

Image shown is a representation only
Manufacturer
Manufacturer No
SF1621-60036
Packaging
Bulk
Description
CONN 2.4MM JACK STR 50OHM EDGEMT
Detailed Description
2.4mm (APC-2.4, OS-50) Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Compression
DataSheet
Mfr
Amphenol SV Microwave
Series
2.4mm
Features
Mounting Hardware
Includes
3 pcs - 1 Connector, 2 Screws
Impedance
50 Ohms
Packaging
Bulk
Part Status
Active
Body Material
Stainless Steel
Housing Color
Silver
Mating Cycles
500
Mounting Type
Board Edge, End Launch
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Connector Style
2.4mm (APC-2.4, OS-50)
Frequency - Max
50 GHz
Shield Termination
Screw
Base Product Number
SF1621
Contact Termination
Compression
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Amphenol SV Microwave |
| Series | 2.4mm |
| Features | Mounting Hardware |
| Includes | 3 pcs - 1 Connector, 2 Screws |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Part Status | Active |
| Body Material | Stainless Steel |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Board Edge, End Launch |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Connector Style | 2.4mm (APC-2.4, OS-50) |
| Frequency - Max | 50 GHz |
| Shield Termination | Screw |
| Base Product Number | SF1621 |
| Contact Termination | Compression |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
