Step1: Product

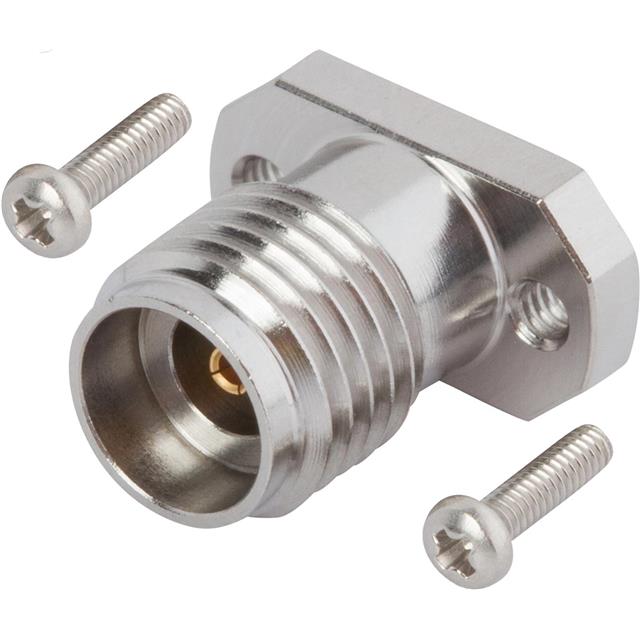

Amphenol SV Microwave SF1521-60070-2S
Image shown is a representation only
Manufacturer
Manufacturer No
SF1521-60070-2S
Quantity
3
Availability
In Stock
Packaging
Tray
Description
CONN 2.92MM JACK STR 50 OHM SMD
Detailed Description
2.92mm Connector Jack, Female Socket 50 Ohms Surface Mount Compression
DataSheet
Mfr
Amphenol SV Microwave
Series
2.92mm
Features
Mounting Hardware
Includes
3 pcs - 1 Connector, 2 Screws
Impedance
50 Ohms
Packaging
Tray
Part Status
Active
Body Material
Stainless Steel
Housing Color
Silver
Mating Cycles
500
Mounting Type
Surface Mount
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Connector Style
2.92mm
Frequency - Max
40 GHz
Number of Ports
1
Mounting Feature
Flange
Shield Termination
Screw
Base Product Number
SF1521
Contact Termination
Compression
Dielectric Material
Polyetherimide (PEI)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Amphenol SV Microwave |
| Series | 2.92mm |
| Features | Mounting Hardware |
| Includes | 3 pcs - 1 Connector, 2 Screws |
| Impedance | 50 Ohms |
| Packaging | Tray |
| Part Status | Active |
| Body Material | Stainless Steel |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Surface Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Connector Style | 2.92mm |
| Frequency - Max | 40 GHz |
| Number of Ports | 1 |
| Mounting Feature | Flange |
| Shield Termination | Screw |
| Base Product Number | SF1521 |
| Contact Termination | Compression |
| Dielectric Material | Polyetherimide (PEI) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
