Step1: Product

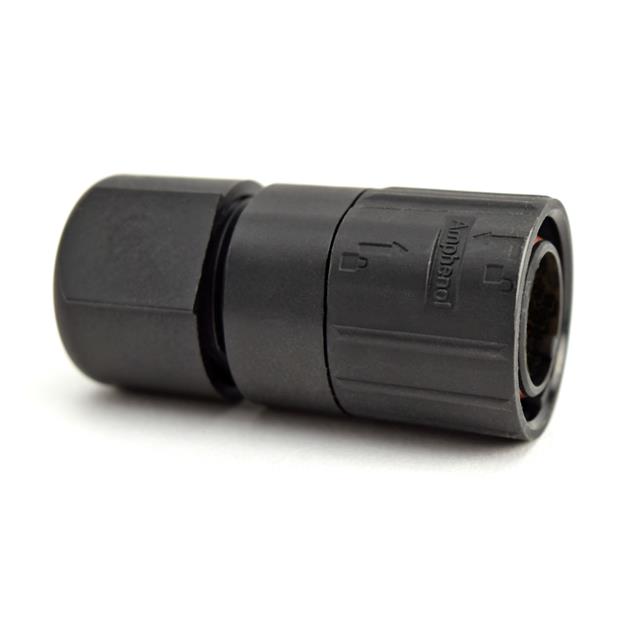

Amphenol Sine Systems Corp C09131H0062025U
Image shown is a representation only
Manufacturer
Manufacturer No
C09131H0062025U
Packaging
Box
Description
MALE CABLE CONNECTOR, QUICKLOCK,
Detailed Description
6 Position Circular Connector Plug, Male Pins Solder Cup
DataSheet
Mfr
Amphenol Sine Systems Corp
Color
Black
Series
signalmate® C091 M16 Q (Quicklock)
Features
Backshell, Coupling Nut
Packaging
Box
Shielding
Unshielded
Orientation
Keyed
Part Status
Active
Termination
Solder Cup
Cable Opening
0.335" ~ 0.413" (8.50mm ~ 10.50mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pins
Fastening Type
Threaded
Shell Material
Thermoplastic
Voltage Rating
100V
Insert Material
Thermoplastic
Primary Material
Plastic
Ingress Protection
IP68 - Dust Tight, Waterproof
Base Product Number
C09131H
Number of Positions
6
Shell Size - Insert
M16-6
Current Rating (Amps)
7A
Operating Temperature
-40°C ~ 100°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Thermoplastic
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Amphenol Sine Systems Corp |
| Color | Black |
| Series | signalmate® C091 M16 Q (Quicklock) |
| Features | Backshell, Coupling Nut |
| Packaging | Box |
| Shielding | Unshielded |
| Orientation | Keyed |
| Part Status | Active |
| Termination | Solder Cup |
| Cable Opening | 0.335" ~ 0.413" (8.50mm ~ 10.50mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Fastening Type | Threaded |
| Shell Material | Thermoplastic |
| Voltage Rating | 100V |
| Insert Material | Thermoplastic |
| Primary Material | Plastic |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Base Product Number | C09131H |
| Number of Positions | 6 |
| Shell Size - Insert | M16-6 |
| Current Rating (Amps) | 7A |
| Operating Temperature | -40°C ~ 100°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
