Step1: Product

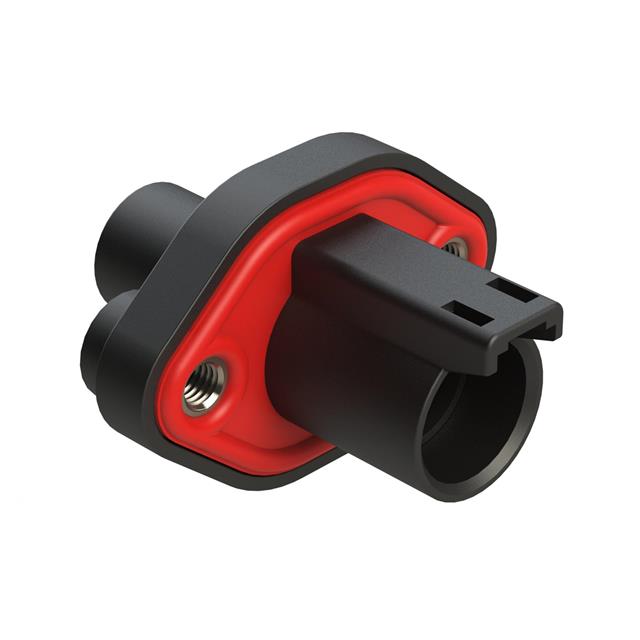

Amphenol Sine Systems Corp ATHD04-1-12P-PM05
Image shown is a representation only
Manufacturer
Manufacturer No
ATHD04-1-12P-PM05
Quantity
4
Availability
In Stock
Packaging
Box
Description
SINGLE POLE, RECEPTACLE, PIN, SI
Detailed Description
1 (Power) Position Circular Connector Receptacle, Male Pins Crimp
DataSheet
Mfr
Amphenol Sine Systems Corp
Color
Black
Series
PanelMate™ ATHD
Packaging
Box
Shielding
Unshielded
Orientation
Keyed
Part Status
Active
Termination
Crimp
Cable Opening
0.134" ~ 0.170" (3.40mm ~ 4.32mm)
Mounting Type
Panel Mount
Connector Type
Receptacle, Male Pins
Fastening Type
Latch Lock
Shell Material
Thermoplastic
Voltage Rating
500V
Mounting Feature
Flange
Primary Material
Plastic
Ingress Protection
IP68 - Dust Tight, Waterproof
Base Product Number
ATHD04
Number of Positions
1 (Power)
Current Rating (Amps)
25A
Operating Temperature
-55°C ~ 125°C
| Attribute | Value |
|---|---|
| Mfr | Amphenol Sine Systems Corp |
| Color | Black |
| Series | PanelMate™ ATHD |
| Packaging | Box |
| Shielding | Unshielded |
| Orientation | Keyed |
| Part Status | Active |
| Termination | Crimp |
| Cable Opening | 0.134" ~ 0.170" (3.40mm ~ 4.32mm) |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Latch Lock |
| Shell Material | Thermoplastic |
| Voltage Rating | 500V |
| Mounting Feature | Flange |
| Primary Material | Plastic |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Base Product Number | ATHD04 |
| Number of Positions | 1 (Power) |
| Current Rating (Amps) | 25A |
| Operating Temperature | -55°C ~ 125°C |
