Step1: Product
Amphenol Sine Systems Corp ATP04-4P-BM04

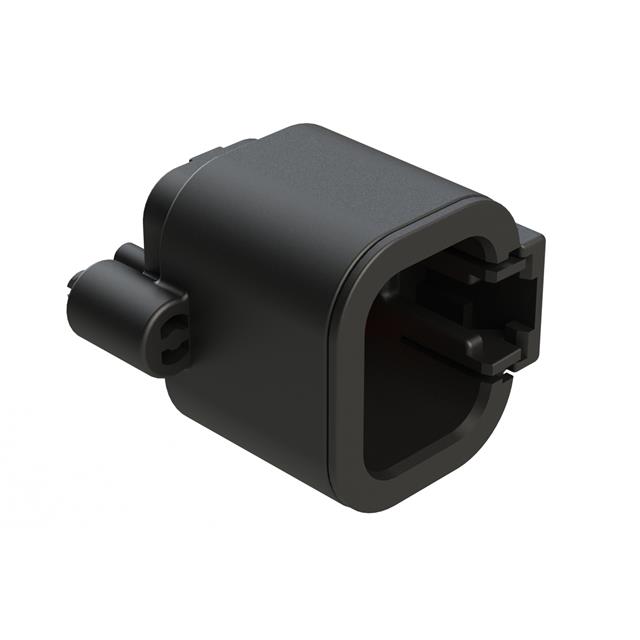

Image shown is a representation only
Manufacturer
Manufacturer No
ATP04-4P-BM04
Quantity
1
Availability
In Stock
Packaging
Box
Description
4 POSITION, STRAIGHT PCB RECEPTA
Detailed Description
Connector Header Through Hole 4 position 0.264" (6.71mm)
DataSheet
Mfr
Amphenol Sine Systems Corp
Style
Board to Cable/Wire
Series
BoardLock™ ATP
Features
Board Guide, Board Lock, Potting Wall, Sealed
Packaging
Box
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Receptacle
Fastening Type
Latch Holder
Number of Rows
2
Pitch - Mating
0.264" (6.71mm)
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
1.126" (28.60mm)
Ingress Protection
IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Base Product Number
ATP04-4P
Insulation Material
Thermoplastic
Number of Positions
4
Row Spacing - Mating
0.400" (10.16mm)
Contact Finish - Post
Tin
Contact Length - Post
0.146" (3.70mm)
Current Rating (Amps)
25A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | Amphenol Sine Systems Corp |
| Style | Board to Cable/Wire |
| Series | BoardLock™ ATP |
| Features | Board Guide, Board Lock, Potting Wall, Sealed |
| Packaging | Box |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Receptacle |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Pitch - Mating | 0.264" (6.71mm) |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 1.126" (28.60mm) |
| Ingress Protection | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
| Base Product Number | ATP04-4P |
| Insulation Material | Thermoplastic |
| Number of Positions | 4 |
| Row Spacing - Mating | 0.400" (10.16mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.146" (3.70mm) |
| Current Rating (Amps) | 25A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
