Step1: Product

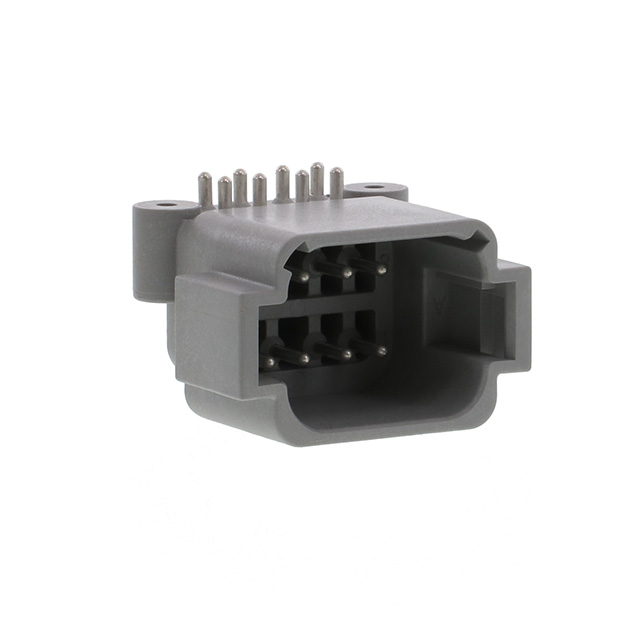

Amphenol Sine Systems Corp ATF13-08PA-BM13
Image shown is a representation only
Manufacturer
Manufacturer No
ATF13-08PA-BM13
Packaging
Bulk
Description
BOARD MOUNT HEADER, RIGHT ANGLE,
Detailed Description
Connector Header Through Hole, Right Angle 8 position
DataSheet
Mfr
Amphenol Sine Systems Corp
Style
Board to Cable/Wire
Series
AT Series™ BoardLock™
Features
Mounting Flange
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive, General Purpose, Industrial
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Through Hole, Right Angle
Connector Type
Receptacle
Fastening Type
Latch Holder
Number of Rows
2
Voltage Rating
250VDC
Contact Material
Copper Alloy
Insulation Color
Gray
Insulation Height
0.917" (23.29mm)
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
ATF13
Insulation Material
Thermoplastic
Number of Positions
8
Contact Finish - Post
Tin
Contact Length - Post
0.120" (3.05mm)
Current Rating (Amps)
13A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | Amphenol Sine Systems Corp |
| Style | Board to Cable/Wire |
| Series | AT Series™ BoardLock™ |
| Features | Mounting Flange |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Voltage Rating | 250VDC |
| Contact Material | Copper Alloy |
| Insulation Color | Gray |
| Insulation Height | 0.917" (23.29mm) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | ATF13 |
| Insulation Material | Thermoplastic |
| Number of Positions | 8 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.120" (3.05mm) |
| Current Rating (Amps) | 13A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
