Step1: Product

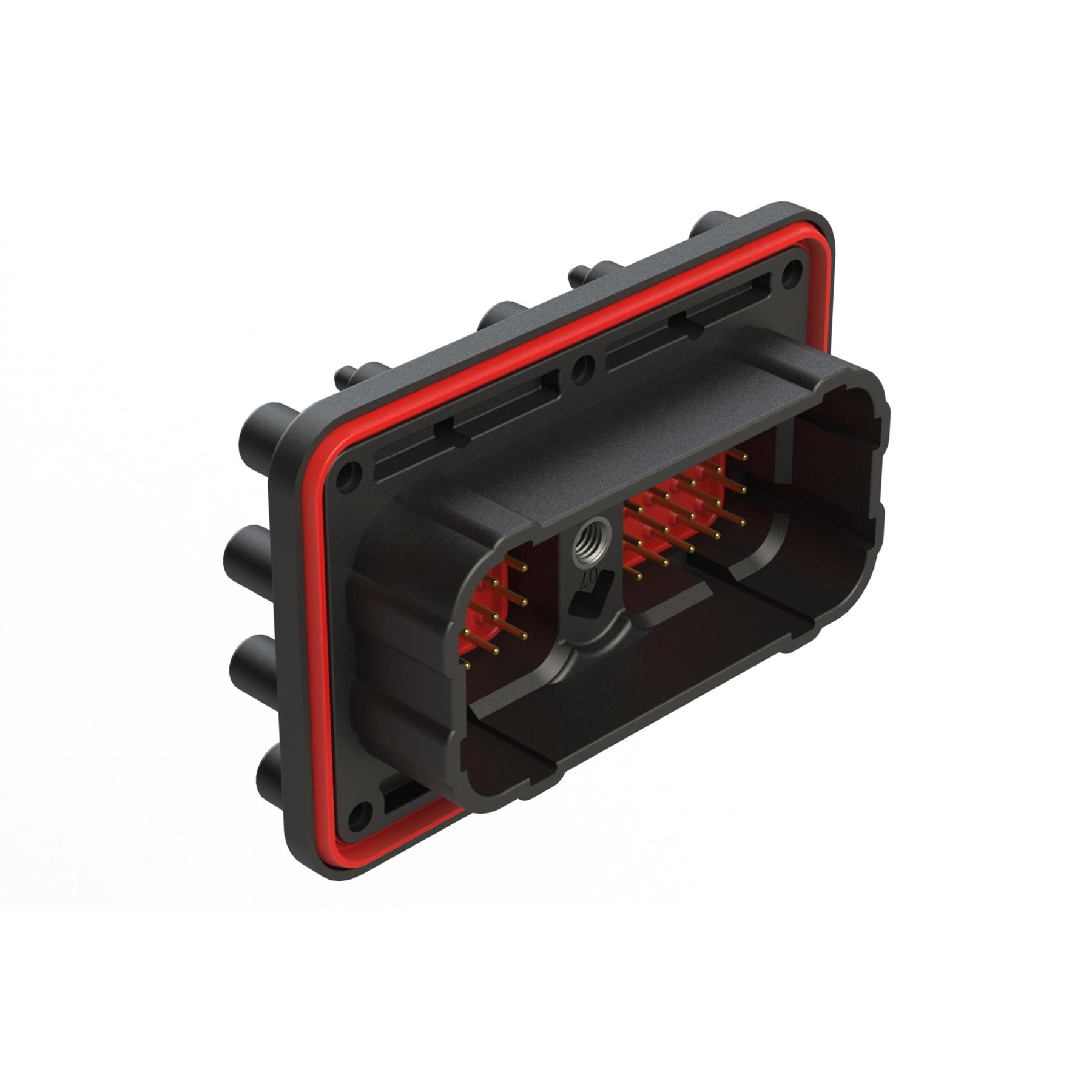

Amphenol Sine Systems Corp ARC22-50P07-BM01SP1
Image shown is a representation only
Manufacturer
Manufacturer No
ARC22-50P07-BM01SP1
Packaging
Box
Description
50 POSITION PCB RECEPTACLE, PIN,
Detailed Description
Connector Header Panel Mount, Through Hole 50 position 0.174" (4.42mm)
DataSheet
Mfr
Amphenol Sine Systems Corp
Style
Board to Cable/Wire
Series
ARCSeries™
Features
Board Guide
Packaging
Box
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Panel Mount, Through Hole
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
5
Pitch - Mating
0.174" (4.42mm)
Voltage Rating
250V
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
1.204" (30.58mm)
Insulation Material
Thermoplastic
Number of Positions
50
Row Spacing - Mating
0.173" (4.40mm)
Contact Finish - Post
Tin
Contact Length - Post
0.128" (3.25mm)
Current Rating (Amps)
7.5A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | Amphenol Sine Systems Corp |
| Style | Board to Cable/Wire |
| Series | ARCSeries™ |
| Features | Board Guide |
| Packaging | Box |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Panel Mount, Through Hole |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 5 |
| Pitch - Mating | 0.174" (4.42mm) |
| Voltage Rating | 250V |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 1.204" (30.58mm) |
| Insulation Material | Thermoplastic |
| Number of Positions | 50 |
| Row Spacing - Mating | 0.173" (4.40mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.128" (3.25mm) |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
