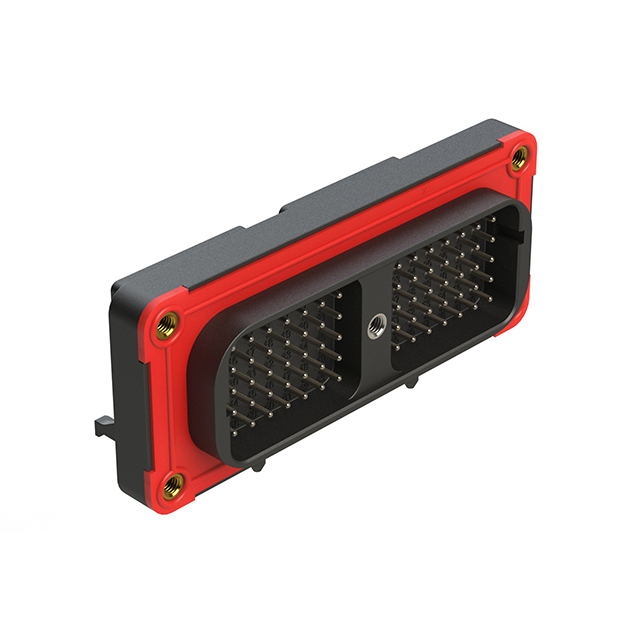

Amphenol Sine Systems Corp ARC13-70PC-BM03SP1
Image shown is a representation only
Manufacturer
Manufacturer No
ARC13-70PC-BM03SP1
Packaging
Bulk
Description
70 POSITION PCB RECEPTACLE WITH
Detailed Description
Connector Header Panel Mount, Through Hole, Right Angle 70 position 0.216" (5.48mm)
DataSheet
Mfr
Amphenol Sine Systems Corp
Style
Board to Cable/Wire
Series
ARC
Features
Mounting Flange, Sealed
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Panel Mount, Through Hole, Right Angle
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
5
Pitch - Mating
0.216" (5.48mm)
Voltage Rating
250V
Contact Material
Copper Alloy
Insulation Color
Black
Ingress Protection
IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Insulation Material
Thermoplastic
Number of Positions
70
Row Spacing - Mating
0.150" (3.81mm)
Contact Finish - Post
Tin
Contact Length - Post
0.126" (3.20mm)
Current Rating (Amps)
13A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Nickel
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | Amphenol Sine Systems Corp |
| Style | Board to Cable/Wire |
| Series | ARC |
| Features | Mounting Flange, Sealed |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 5 |
| Pitch - Mating | 0.216" (5.48mm) |
| Voltage Rating | 250V |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Ingress Protection | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
| Insulation Material | Thermoplastic |
| Number of Positions | 70 |
| Row Spacing - Mating | 0.150" (3.81mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.126" (3.20mm) |
| Current Rating (Amps) | 13A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Nickel |
| Number of Positions Loaded | All |
