Step1: Product

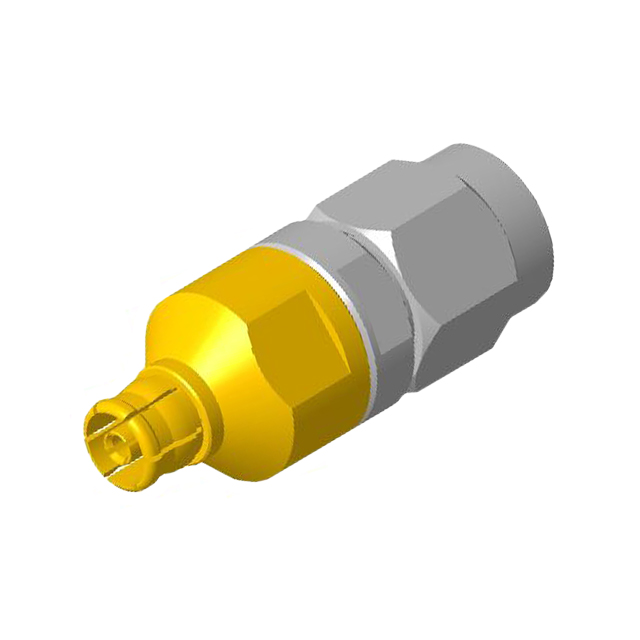

Amphenol RF AD-SMAP-PSMPJ-1
Image shown is a representation only
Manufacturer
Manufacturer No
AD-SMAP-PSMPJ-1
Packaging
Bulk
Description
COAX ADAPT SMA TO PSMP
Detailed Description
Adapter Coaxial Connector SMA Plug, Male Pin To PSMP Jack, Female Socket 50 Ohms
DataSheet
Mfr
Amphenol RF
Style
Straight
Impedance
50 Ohms
Packaging
Bulk
Body Finish
Gold, Passivated
Part Status
Active
Adapter Type
Plug to Jack
Body Material
Beryllium Copper, Stainless Steel
Center Gender
Female to Male
Mating Cycles
100, 500, 1000
Mounting Type
Free Hanging (In-Line)
Adapter Series
SMA to PSMP
Fastening Type
Snap-On, Threaded
Insertion Loss
0.16dB
Conversion Type
Between Series
Frequency - Max
10 GHz
Mounting Feature
Bulkhead
Base Product Number
AD-SMA
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-55°C ~ 155°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
Convert To (Adapter End)
PSMP Jack, Female Socket
Convert From (Adapter End)
SMA Plug, Male Pin
| Attribute | Value |
|---|---|
| Mfr | Amphenol RF |
| Style | Straight |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | Gold, Passivated |
| Part Status | Active |
| Adapter Type | Plug to Jack |
| Body Material | Beryllium Copper, Stainless Steel |
| Center Gender | Female to Male |
| Mating Cycles | 100, 500, 1000 |
| Mounting Type | Free Hanging (In-Line) |
| Adapter Series | SMA to PSMP |
| Fastening Type | Snap-On, Threaded |
| Insertion Loss | 0.16dB |
| Conversion Type | Between Series |
| Frequency - Max | 10 GHz |
| Mounting Feature | Bulkhead |
| Base Product Number | AD-SMA |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -55°C ~ 155°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
| Convert To (Adapter End) | PSMP Jack, Female Socket |
| Convert From (Adapter End) | SMA Plug, Male Pin |
