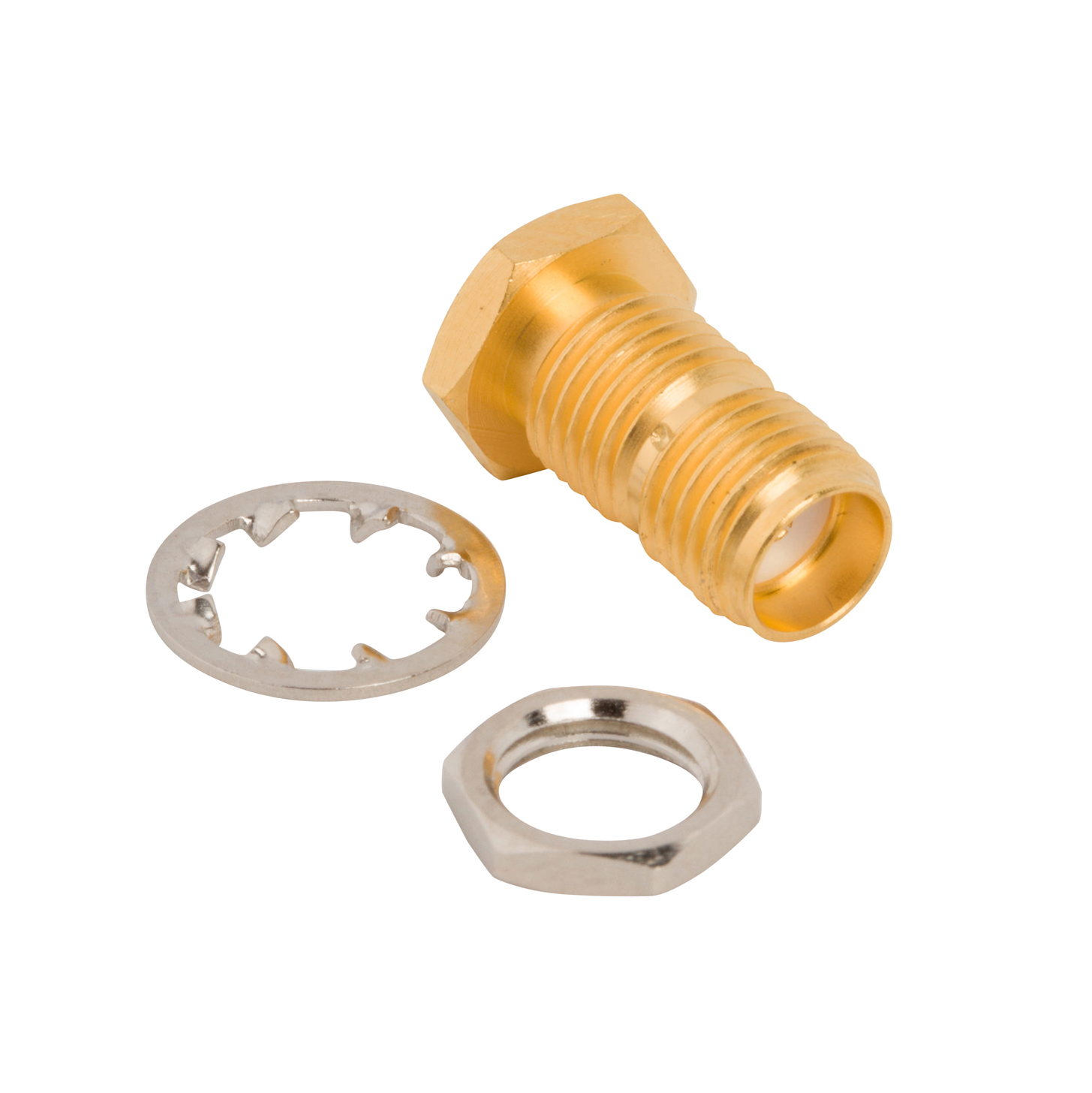

Amphenol RF AD-SMAJAMC4J-1
Image shown is a representation only
Manufacturer
Manufacturer No
AD-SMAJAMC4J-1
Packaging
Bag
Description
COAX ADAPT SMA TO AMC4
Detailed Description
Adapter Coaxial Connector SMA Jack, Female Socket To AMC4 Jack, Female Socket 50 Ohms
DataSheet
Mfr
Amphenol RF
Style
Straight
Impedance
50 Ohms
Packaging
Bag
Body Finish
Gold, Passivated
Part Status
Active
Adapter Type
Jack to Jack
Body Material
Brass, Stainless Steel
Center Gender
Female to Female
Mating Cycles
100
Mounting Type
Panel Mount
Adapter Series
SMA to AMC4
Fastening Type
Threaded, Threaded
Conversion Type
Between Series
Frequency - Max
6 GHz
Mounting Feature
Bulkhead
Base Product Number
AD-SMA
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
Convert To (Adapter End)
AMC4 Jack, Female Socket
Convert From (Adapter End)
SMA Jack, Female Socket
| Attribute | Value |
|---|---|
| Mfr | Amphenol RF |
| Style | Straight |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Gold, Passivated |
| Part Status | Active |
| Adapter Type | Jack to Jack |
| Body Material | Brass, Stainless Steel |
| Center Gender | Female to Female |
| Mating Cycles | 100 |
| Mounting Type | Panel Mount |
| Adapter Series | SMA to AMC4 |
| Fastening Type | Threaded, Threaded |
| Conversion Type | Between Series |
| Frequency - Max | 6 GHz |
| Mounting Feature | Bulkhead |
| Base Product Number | AD-SMA |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
| Convert To (Adapter End) | AMC4 Jack, Female Socket |
| Convert From (Adapter End) | SMA Jack, Female Socket |
