Step1: Product
Amphenol PCTEL GNSS-L1256-40TNC

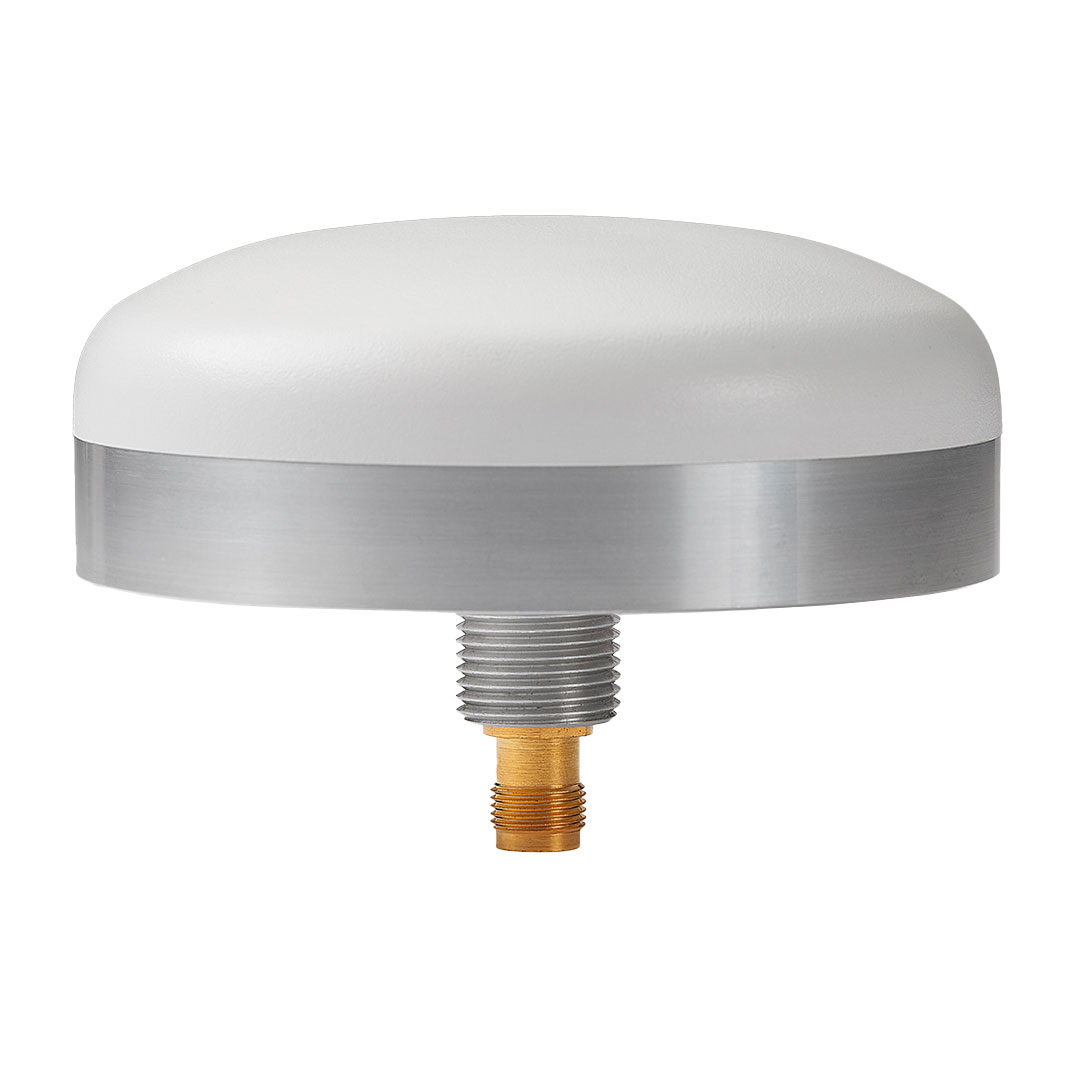

Image shown is a representation only
Manufacturer
Manufacturer No
GNSS-L1256-40TNC
Packaging
Bulk
Description
RF ANT GNSS 40DB PRECIS TNCF LP
Detailed Description
RF ANTENNA BeiDou, Galileo, GLONASS, GNSS, GPS Dome TNC Female Bracket Mount, Through Hole
Datasheet
Gain
3dBic, 3dBic
VSWR
2
Features
LNA
Packaging
Bulk
Termination
TNC Female
Antenna Type
Dome
Applications
BeiDou, Galileo, GLONASS, GNSS, GPS
Height (Max)
1.575" (40.00mm)
Manufacturer
Amphenol PCTEL
Mounting Type
Bracket Mount, Through Hole
Frequency Group
UHF (1GHz ~ 2GHz)
Frequency Range
1.15GHz ~ 1.3GHz, 1.5GHz ~ 1.615GHz
Number of Bands
2
Ingress Protection
IP67
RF Family/Standard
Navigation
Frequency (Center/Band)
1.22GHz, 1.5575GHz
| Attribute | Value |
|---|---|
| Gain | 3dBic, 3dBic |
| VSWR | 2 |
| Features | LNA |
| Packaging | Bulk |
| Termination | TNC Female |
| Antenna Type | Dome |
| Applications | BeiDou, Galileo, GLONASS, GNSS, GPS |
| Height (Max) | 1.575" (40.00mm) |
| Manufacturer | Amphenol PCTEL |
| Mounting Type | Bracket Mount, Through Hole |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.15GHz ~ 1.3GHz, 1.5GHz ~ 1.615GHz |
| Number of Bands | 2 |
| Ingress Protection | IP67 |
| RF Family/Standard | Navigation |
| Frequency (Center/Band) | 1.22GHz, 1.5575GHz |
