Step1: Product
Amphenol PCTEL GNSS-HR26PM

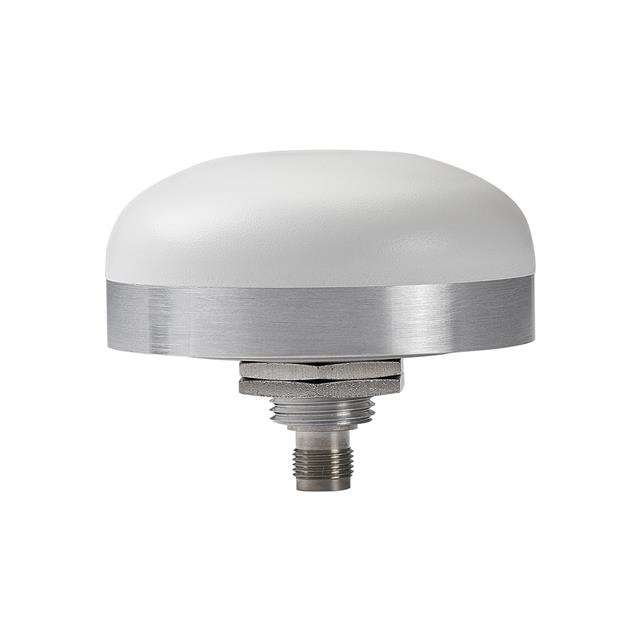

Image shown is a representation only
Manufacturer
Manufacturer No
GNSS-HR26PM
Packaging
Box
Description
RF ANT 1.5875GHZ PUCK SMA PANEL
Detailed Description
RF ANTENNA GLONASS, GPS, GNSS Puck SMA Stud, Through Hole
DataSheet
Gain
-2dBic
VSWR
2
Features
Cable - 5m, LNA
Packaging
Box
Part Status
Active
Termination
SMA
Antenna Type
Puck
Applications
GLONASS, GPS, GNSS
Height (Max)
0.500" (12.70mm)
Manufacturer
Amphenol PCTEL
Mounting Type
Stud, Through Hole
Frequency Group
UHF (1GHz ~ 2GHz)
Frequency Range
1.565GHz ~ 1.61GHz
Number of Bands
1
Ingress Protection
IP56
RF Family/Standard
Navigation
Frequency (Center/Band)
1.5875GHz
| Attribute | Value |
|---|---|
| Gain | -2dBic |
| VSWR | 2 |
| Features | Cable - 5m, LNA |
| Packaging | Box |
| Part Status | Active |
| Termination | SMA |
| Antenna Type | Puck |
| Applications | GLONASS, GPS, GNSS |
| Height (Max) | 0.500" (12.70mm) |
| Manufacturer | Amphenol PCTEL |
| Mounting Type | Stud, Through Hole |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.565GHz ~ 1.61GHz |
| Number of Bands | 1 |
| Ingress Protection | IP56 |
| RF Family/Standard | Navigation |
| Frequency (Center/Band) | 1.5875GHz |
