Step1: Product

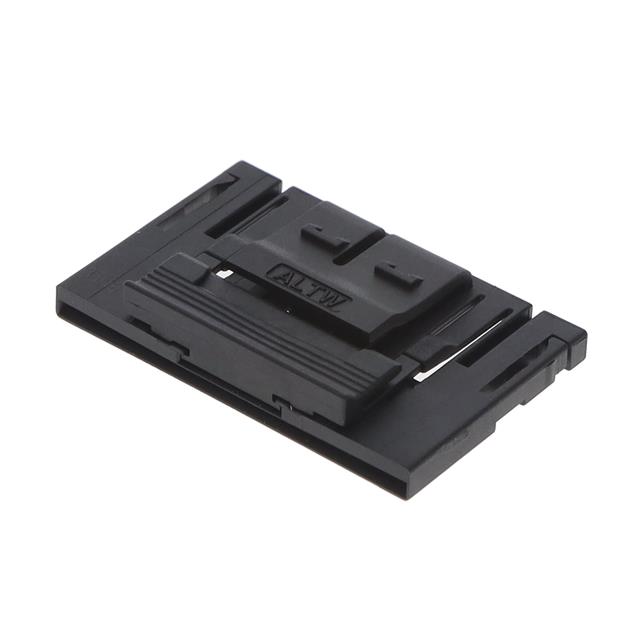

Amphenol LTW Z2B1-ACNMAN-BN0001
Image shown is a representation only
Manufacturer
Manufacturer No
Z2B1-ACNMAN-BN0001
Packaging
Tray
Description
ZCONNECT SECONDARY LATCH/ANGLE-P
Detailed Description
36 Position FPC Connector Contacts, Bottom 0.071" (1.80mm) Surface Mount, Right Angle
Datasheet
Pitch
0.071" (1.80mm)
Series
ZCONNECT
Packaging
Tray
Termination
Solder
Manufacturer
Amphenol LTW
Housing Color
Black
Mounting Type
Surface Mount, Right Angle
Flat Flex Type
FPC
Housing Material
Thermoplastic
FFC, FCB Thickness
0.75mm
Height Above Board
0.264" (6.70mm)
Number of Positions
36
Operating Temperature
-40°C ~ 110°C
Connector/Contact Type
Contacts, Bottom
| Attribute | Value |
|---|---|
| Pitch | 0.071" (1.80mm) |
| Series | ZCONNECT |
| Packaging | Tray |
| Termination | Solder |
| Manufacturer | Amphenol LTW |
| Housing Color | Black |
| Mounting Type | Surface Mount, Right Angle |
| Flat Flex Type | FPC |
| Housing Material | Thermoplastic |
| FFC, FCB Thickness | 0.75mm |
| Height Above Board | 0.264" (6.70mm) |
| Number of Positions | 36 |
| Operating Temperature | -40°C ~ 110°C |
| Connector/Contact Type | Contacts, Bottom |
