Step1: Product
Amphenol LTW Z2B1-36AFRS-BA0001

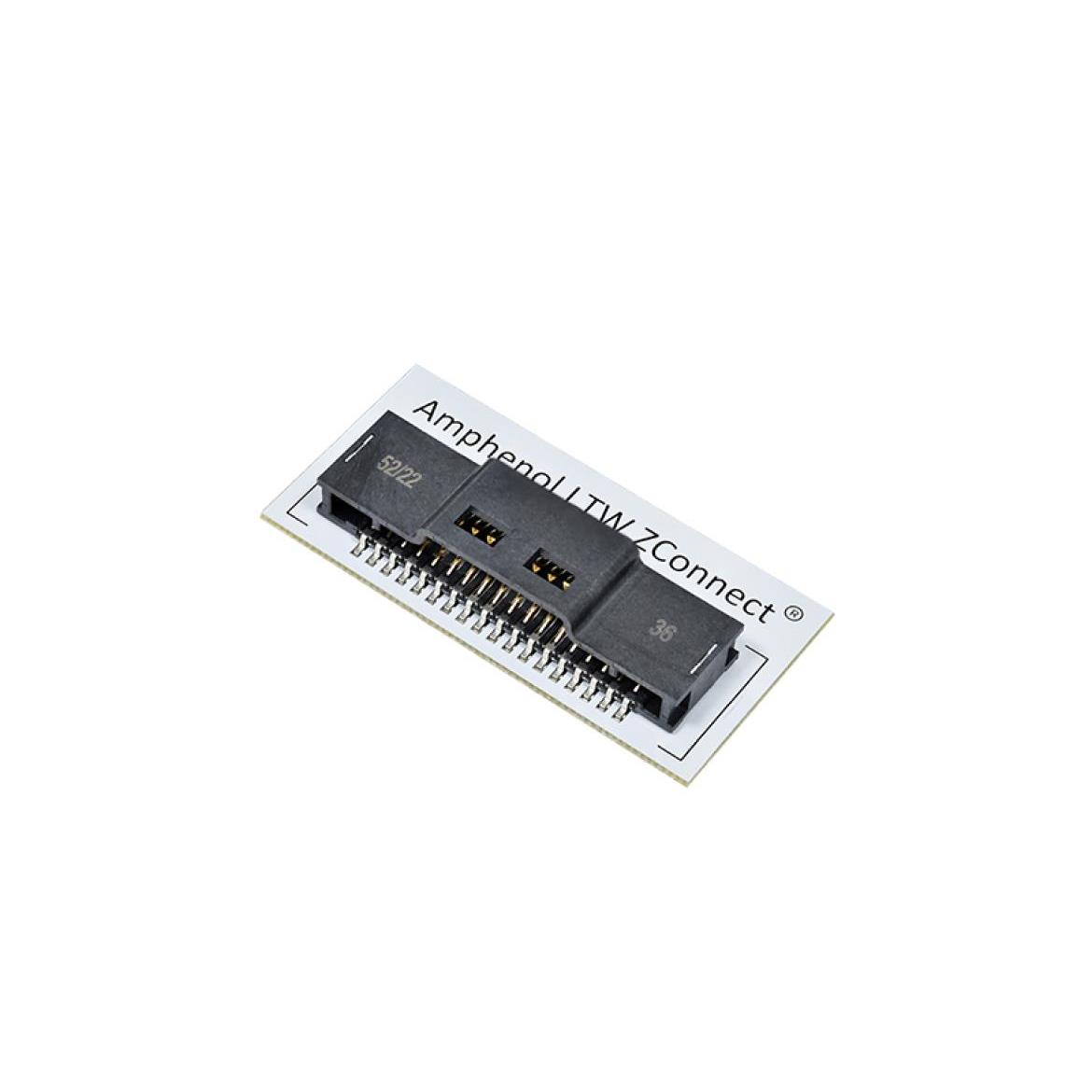

Image shown is a representation only
Manufacturer
Manufacturer No
Z2B1-36AFRS-BA0001
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
ZCONNECT SECONDARY LATCH/ANGLE-P
Detailed Description
36 Position FPC Connector Contacts, Bottom 0.071" (1.80mm) Surface Mount, Right Angle
Datasheet
Pitch
0.071" (1.80mm)
Series
ZCONNECT
Features
Board Guide
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Manufacturer
Amphenol LTW
Housing Color
Black
Mounting Type
Surface Mount, Right Angle
Contact Finish
Gold
Flat Flex Type
FPC
Contact Material
Copper Alloy
Housing Material
Thermoplastic
Height Above Board
0.311" (7.90mm)
Number of Positions
36
Operating Temperature
-40°C ~ 110°C
Connector/Contact Type
Contacts, Bottom
| Attribute | Value |
|---|---|
| Pitch | 0.071" (1.80mm) |
| Series | ZCONNECT |
| Features | Board Guide |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | Amphenol LTW |
| Housing Color | Black |
| Mounting Type | Surface Mount, Right Angle |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| Height Above Board | 0.311" (7.90mm) |
| Number of Positions | 36 |
| Operating Temperature | -40°C ~ 110°C |
| Connector/Contact Type | Contacts, Bottom |
