Step1: Product

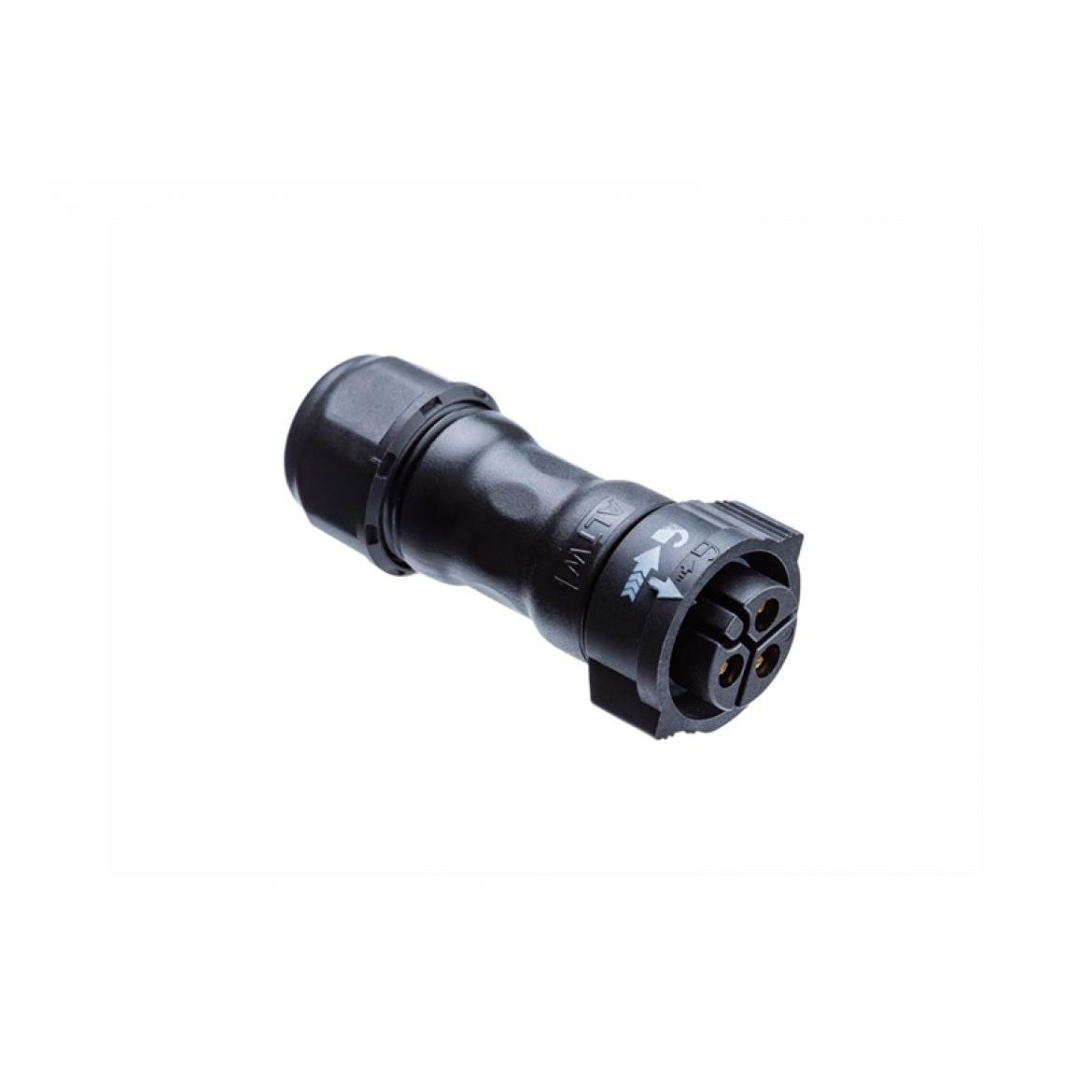

Amphenol LTW CB-06BFFA-QL8MP0
Image shown is a representation only
Manufacturer
Manufacturer No
CB-06BFFA-QL8MP0
Packaging
Bulk
Description
X-LOK, MIDDLE SIZE, 10A, 06 PINS
Detailed Description
6 (Data) Position Circular Connector Plug, Female Sockets Solder Cup
DataSheet
Mfr
Amphenol LTW
Color
Black
Series
X-Lok, Middle
Features
Backshell
Packaging
Bulk
Shielding
Unshielded
Orientation
Keyed
Part Status
Active
Termination
Solder Cup
Cable Opening
0.315" ~ 0.394" (8.00mm ~ 10.00mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Female Sockets
Fastening Type
Push-Pull
Shell Material
Polyamide (PA), Nylon, Glass Filled
Voltage Rating
300VAC/DC
Insert Material
Polyamide (PA), Nylon
Contact Material
Copper Alloy
Primary Material
Plastic
Ingress Protection
IP68 - Dust Tight, Waterproof
Base Product Number
CB-06BFFA
Number of Positions
6 (Data)
Shell Size - Insert
C
Current Rating (Amps)
10A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Amphenol LTW |
| Color | Black |
| Series | X-Lok, Middle |
| Features | Backshell |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | Keyed |
| Part Status | Active |
| Termination | Solder Cup |
| Cable Opening | 0.315" ~ 0.394" (8.00mm ~ 10.00mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Push-Pull |
| Shell Material | Polyamide (PA), Nylon, Glass Filled |
| Voltage Rating | 300VAC/DC |
| Insert Material | Polyamide (PA), Nylon |
| Contact Material | Copper Alloy |
| Primary Material | Plastic |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Base Product Number | CB-06BFFA |
| Number of Positions | 6 (Data) |
| Shell Size - Insert | C |
| Current Rating (Amps) | 10A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Material Flammability Rating | UL94 V-0 |
