Step1: Product

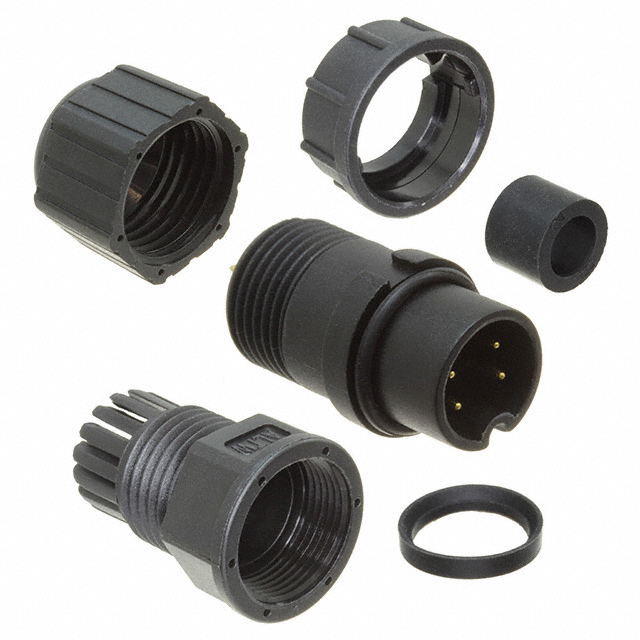

Amphenol LTW BD-04BFMA-LL7001
Image shown is a representation only
Manufacturer
Manufacturer No
BD-04BFMA-LL7001
Quantity
25
Availability
In Stock
Packaging
Bulk
Description
CONN PLUG MALE 4P GOLD SLDR CUP
Detailed Description
4 Position Circular Connector Plug, Male Pins Solder Cup
DataSheet
Mfr
Amphenol LTW
Color
Black
Series
Ceres, Standard
Features
Backshell, Coupling Nut
Packaging
Bulk
Shielding
Unshielded
Orientation
Keyed
Part Status
Active
Termination
Solder Cup
Cable Opening
0.177" ~ 0.256" (4.50mm ~ 6.50mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pins
Fastening Type
Bayonet Lock
Shell Material
Polyamide (PA), Nylon, Glass Filled
Insert Material
Polyamide (PA), Nylon, Glass Filled
Contact Material
Copper Alloy
Primary Material
Plastic
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
BD-04BFMA
Number of Positions
4
Shell Size - Insert
B
Current Rating (Amps)
5A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Polyamide (PA), Nylon
| Attribute | Value |
|---|---|
| Mfr | Amphenol LTW |
| Color | Black |
| Series | Ceres, Standard |
| Features | Backshell, Coupling Nut |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | Keyed |
| Part Status | Active |
| Termination | Solder Cup |
| Cable Opening | 0.177" ~ 0.256" (4.50mm ~ 6.50mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Fastening Type | Bayonet Lock |
| Shell Material | Polyamide (PA), Nylon, Glass Filled |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Contact Material | Copper Alloy |
| Primary Material | Plastic |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | BD-04BFMA |
| Number of Positions | 4 |
| Shell Size - Insert | B |
| Current Rating (Amps) | 5A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Polyamide (PA), Nylon |
