Step1: Product

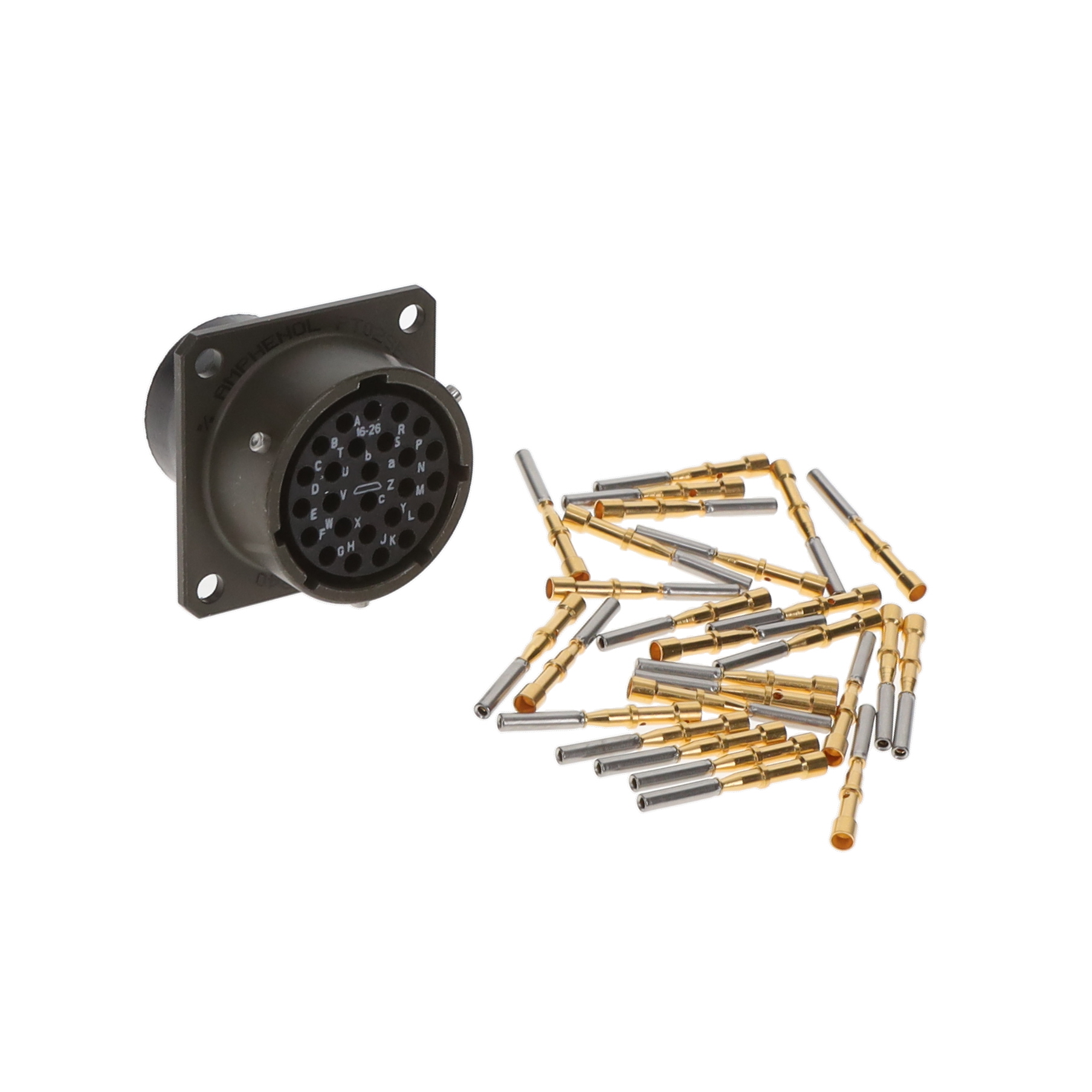

Amphenol Industrial Operations PT02SE-16-26S
Image shown is a representation only
Manufacturer
Manufacturer No
PT02SE-16-26S
Packaging
Bag
Description
MIL-26482 MS/PT/CMB RECEPT
Detailed Description
26 Position Circular Connector Receptacle, Female Sockets Crimp
DataSheet
Mfr
Amphenol Industrial Operations
Color
Olive Drab
Series
PT
Packaging
Bag
Shielding
Unshielded
Orientation
N (Normal)
Part Status
Active
Termination
Crimp
Applications
Aerospace, Industrial, Instrumentation, Mass Transit, Military
Shell Finish
Olive Drab Chromate over Cadmium
Mounting Type
Panel Mount
Qualification
MIL-DTL-26482 Series I
Connector Type
Receptacle, Female Sockets
Fastening Type
Bayonet Lock
Shell Material
Aluminum
Voltage Rating
600VAC
Insert Material
Neoprene
Contact Material
Copper Alloy
Mounting Feature
Flange
Primary Material
Metal
Ingress Protection
Environment Resistant
Number of Positions
26
Shell Size - Insert
16-26
Current Rating (Amps)
7.5A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
| Attribute | Value |
|---|---|
| Mfr | Amphenol Industrial Operations |
| Color | Olive Drab |
| Series | PT |
| Packaging | Bag |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Part Status | Active |
| Termination | Crimp |
| Applications | Aerospace, Industrial, Instrumentation, Mass Transit, Military |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Mounting Type | Panel Mount |
| Qualification | MIL-DTL-26482 Series I |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Bayonet Lock |
| Shell Material | Aluminum |
| Voltage Rating | 600VAC |
| Insert Material | Neoprene |
| Contact Material | Copper Alloy |
| Mounting Feature | Flange |
| Primary Material | Metal |
| Ingress Protection | Environment Resistant |
| Number of Positions | 26 |
| Shell Size - Insert | 16-26 |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
