Step1: Product
Amphenol Industrial Operations PT02SE-14-5P(027)

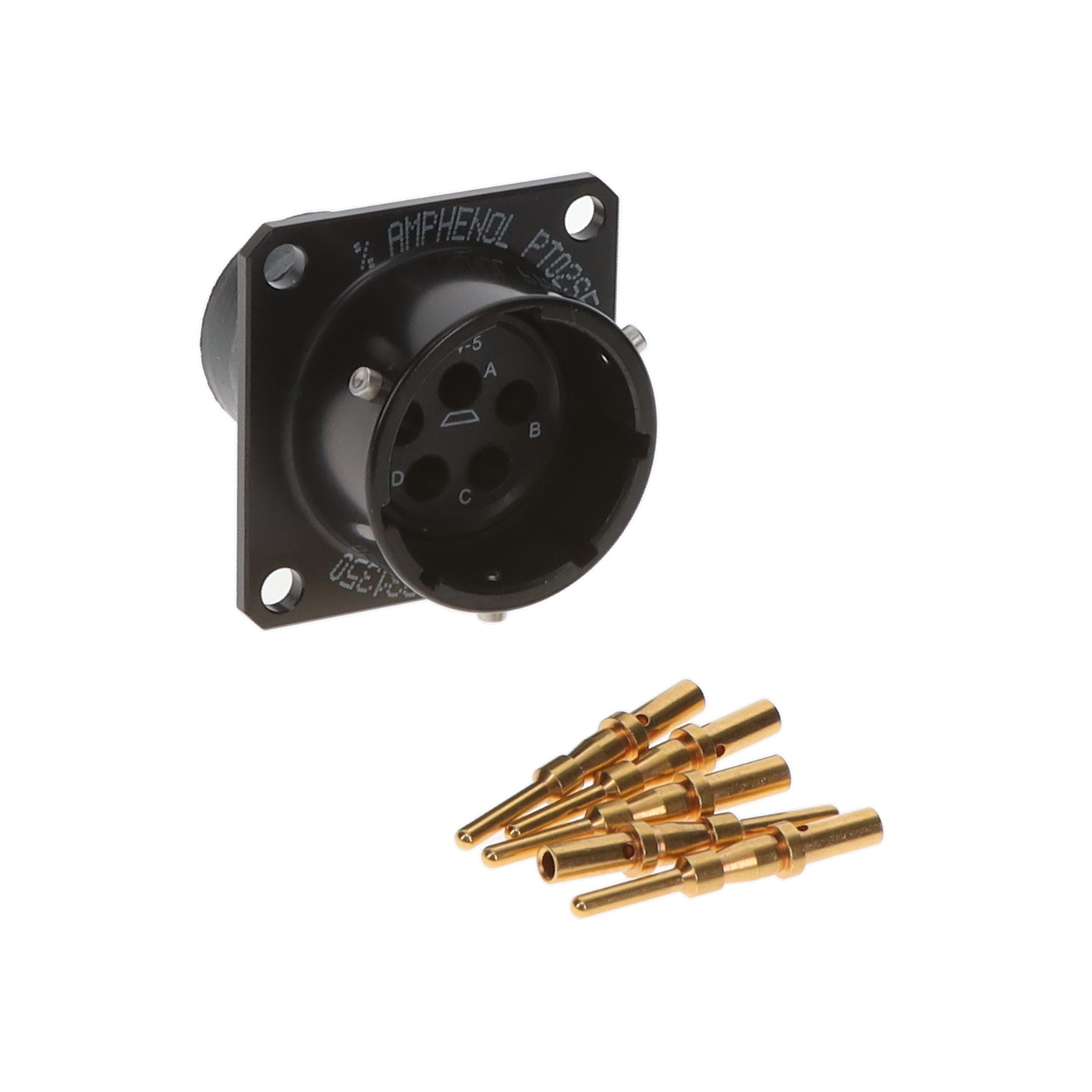

Image shown is a representation only
Manufacturer
Manufacturer No
PT02SE-14-5P(027)
Packaging
Bag
Description
MIL-26482 MS/PT/CMB RECEPT
Detailed Description
5 Position Circular Connector Receptacle, Male Pins Crimp
DataSheet
Mfr
Amphenol Industrial Operations
Color
Black
Series
PT
Features
Backshell
Packaging
Bag
Shielding
Unshielded
Orientation
N (Normal)
Part Status
Active
Termination
Crimp
Applications
Aerospace, Industrial, Instrumentation, Mass Transit, Military
Shell Finish
Black Zinc Cobalt
Mounting Type
Panel Mount
Qualification
MIL-DTL-26482 Series I
Connector Type
Receptacle, Male Pins
Fastening Type
Bayonet Lock
Shell Material
Aluminum
Voltage Rating
1kVAC
Insert Material
Neoprene
Contact Material
Copper Alloy
Mounting Feature
Flange
Primary Material
Metal
Ingress Protection
Environment Resistant
Number of Positions
5
Shell Size - Insert
14-5
Current Rating (Amps)
13A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Aluminum, Black Zinc Cobalt
| Attribute | Value |
|---|---|
| Mfr | Amphenol Industrial Operations |
| Color | Black |
| Series | PT |
| Features | Backshell |
| Packaging | Bag |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Part Status | Active |
| Termination | Crimp |
| Applications | Aerospace, Industrial, Instrumentation, Mass Transit, Military |
| Shell Finish | Black Zinc Cobalt |
| Mounting Type | Panel Mount |
| Qualification | MIL-DTL-26482 Series I |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Bayonet Lock |
| Shell Material | Aluminum |
| Voltage Rating | 1kVAC |
| Insert Material | Neoprene |
| Contact Material | Copper Alloy |
| Mounting Feature | Flange |
| Primary Material | Metal |
| Ingress Protection | Environment Resistant |
| Number of Positions | 5 |
| Shell Size - Insert | 14-5 |
| Current Rating (Amps) | 13A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Aluminum, Black Zinc Cobalt |
