Step1: Product

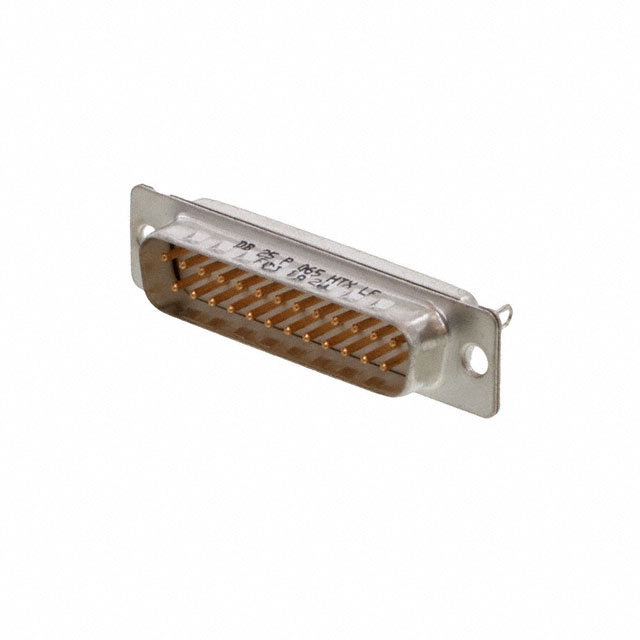

Amphenol ICC (FCI) DB25P065HTXLF
Image shown is a representation only
Manufacturer
Manufacturer No
DB25P065HTXLF
Packaging
Tray
Description
CONN D-SUB PLUG 25POS SOLDER CUP
Detailed Description
25 Position D-Sub Plug, Male Pins Connector
DataSheet
Mfr
Amphenol ICC (FCI)
Color
Natural
Series
D
Features
Grounding Indents, Shielded
Packaging
Tray
Part Status
Active
Termination
Solder Cup
Contact Type
Signal
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pins
Contact Finish
Gold, GXT™
Flange Feature
Housing/Shell (Unthreaded)
Number of Rows
2
Voltage Rating
300V
Connector Style
D-Sub
Contact Material
Copper Alloy
Base Product Number
DB25P065
Dielectric Material
Thermoplastic
Number of Positions
25
Current Rating (Amps)
5A per Contact
Operating Temperature
-55°C ~ 125°C
Shell Material, Finish
Steel, Tin Plated
Contact Finish Thickness
30.0µin (0.76µm)
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
3 (DB, B)
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (FCI) |
| Color | Natural |
| Series | D |
| Features | Grounding Indents, Shielded |
| Packaging | Tray |
| Part Status | Active |
| Termination | Solder Cup |
| Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold, GXT™ |
| Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 2 |
| Voltage Rating | 300V |
| Connector Style | D-Sub |
| Contact Material | Copper Alloy |
| Base Product Number | DB25P065 |
| Dielectric Material | Thermoplastic |
| Number of Positions | 25 |
| Current Rating (Amps) | 5A per Contact |
| Operating Temperature | -55°C ~ 125°C |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 3 (DB, B) |
