Step1: Product
Amphenol ICC (FCI) 10090769-P154ALF

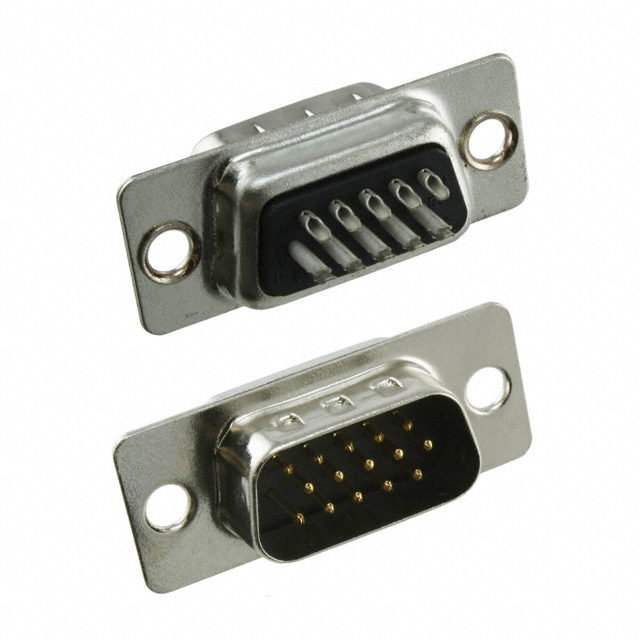

Image shown is a representation only
Manufacturer
Manufacturer No
10090769-P154ALF
Quantity
860
Availability
In Stock
Packaging
Tray
Description
CONN D-SUB HD PLG 15POS SLDR CUP
Detailed Description
15 Position D-Sub, High Density Plug, Male Pins Connector
DataSheet
Mfr
Amphenol ICC (FCI)
Color
Black
Series
10090769
Features
Grounding Indents
Packaging
Tray
Wire Gauge
24-28 AWG
Part Status
Active
Termination
Solder Cup
Contact Type
Signal
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pins
Contact Finish
Gold
Flange Feature
Housing/Shell (Unthreaded)
Number of Rows
3
Voltage Rating
250V
Connector Style
D-Sub, High Density
Contact Material
Copper Alloy
Base Product Number
10090769
Dielectric Material
Thermoplastic, Glass Filled
Number of Positions
15
Current Rating (Amps)
2.5A per Contact
Operating Temperature
-55°C ~ 105°C
Shell Material, Finish
Steel, Nickel Plated
Contact Finish Thickness
Flash
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
1 (DE, E) High Density
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (FCI) |
| Color | Black |
| Series | 10090769 |
| Features | Grounding Indents |
| Packaging | Tray |
| Wire Gauge | 24-28 AWG |
| Part Status | Active |
| Termination | Solder Cup |
| Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 3 |
| Voltage Rating | 250V |
| Connector Style | D-Sub, High Density |
| Contact Material | Copper Alloy |
| Base Product Number | 10090769 |
| Dielectric Material | Thermoplastic, Glass Filled |
| Number of Positions | 15 |
| Current Rating (Amps) | 2.5A per Contact |
| Operating Temperature | -55°C ~ 105°C |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | Flash |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 1 (DE, E) High Density |
