Step1: Product

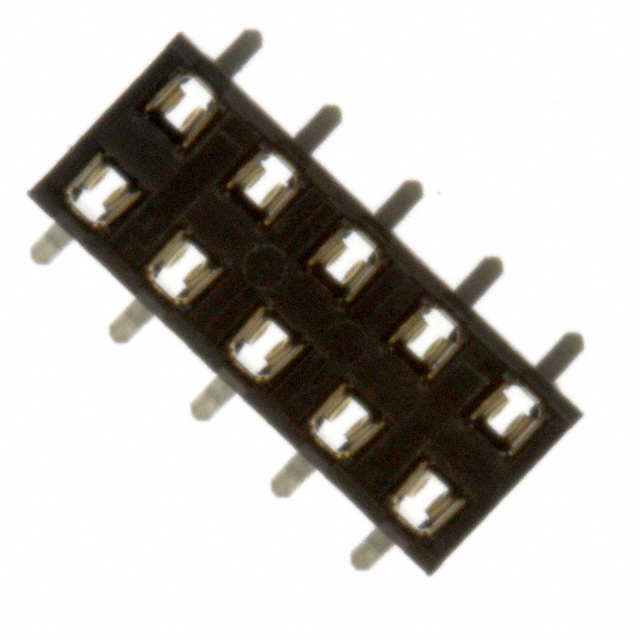

Amphenol ICC (FCI) 91596-110LF
Image shown is a representation only
Manufacturer
Manufacturer No
91596-110LF
Packaging
Tube
Description
CONN RCPT 10POS 0.079 GOLD SMD
Detailed Description
10 Position Receptacle, Bottom Entry Connector 0.079" (2.00mm) Surface Mount Gold
DataSheet
Mfr
Amphenol ICC (FCI)
Style
Board to Board or Cable
Series
Minitek® 2.00mm
Packaging
Tube
Part Status
Active
Termination
Solder
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Receptacle, Bottom Entry
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
200V
Contact Material
Beryllium Copper
Insulation Color
Black
Insulation Height
0.091" (2.30mm)
Base Product Number
91596
Insulation Material
Plastic
Number of Positions
10
Row Spacing - Mating
0.079" (2.00mm)
Contact Finish - Post
Gold
Current Rating (Amps)
1A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
Flash
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (FCI) |
| Style | Board to Board or Cable |
| Series | Minitek® 2.00mm |
| Packaging | Tube |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle, Bottom Entry |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 200V |
| Contact Material | Beryllium Copper |
| Insulation Color | Black |
| Insulation Height | 0.091" (2.30mm) |
| Base Product Number | 91596 |
| Insulation Material | Plastic |
| Number of Positions | 10 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 1A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
