Step1: Product
Amphenol ICC (FCI) 20021321-00014T4LF

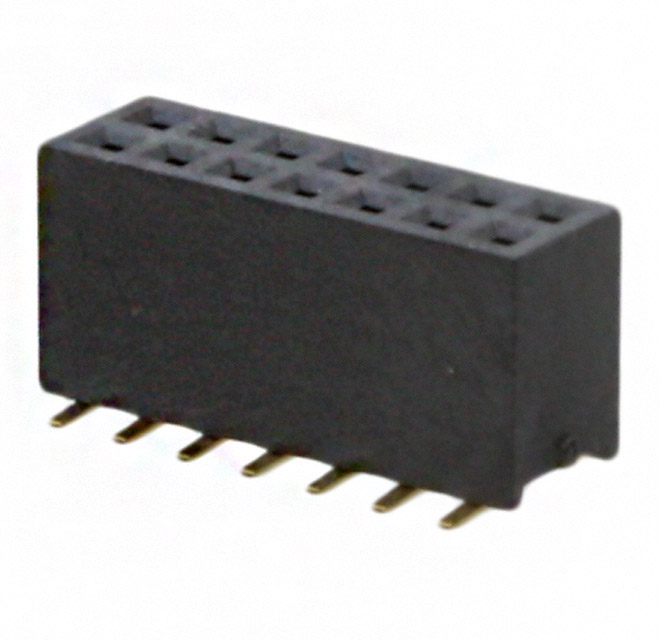

Image shown is a representation only
Manufacturer
Manufacturer No
20021321-00014T4LF
Quantity
2385
Availability
In Stock
Packaging
Tube
Description
CONN RCPT 14POS 0.05 GOLD SMD
Detailed Description
14 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
DataSheet
Mfr
Amphenol ICC (FCI)
Style
Board to Board
Series
Minitek127® 1.27mm
Packaging
Tube
Part Status
Active
Termination
Solder
Applications
General Purpose, Industrial, Telecommunications
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.050" (1.27mm)
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.177" (4.50mm)
Base Product Number
20021321
Insulation Material
Plastic
Number of Positions
14
Row Spacing - Mating
0.050" (1.27mm)
Contact Finish - Post
Tin
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
100.0µin (2.54µm)
Contact Finish Thickness - Mating
10.0µin (0.25µm)
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (FCI) |
| Style | Board to Board |
| Series | Minitek127® 1.27mm |
| Packaging | Tube |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose, Industrial, Telecommunications |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.050" (1.27mm) |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.177" (4.50mm) |
| Base Product Number | 20021321 |
| Insulation Material | Plastic |
| Number of Positions | 14 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Contact Finish - Post | Tin |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
