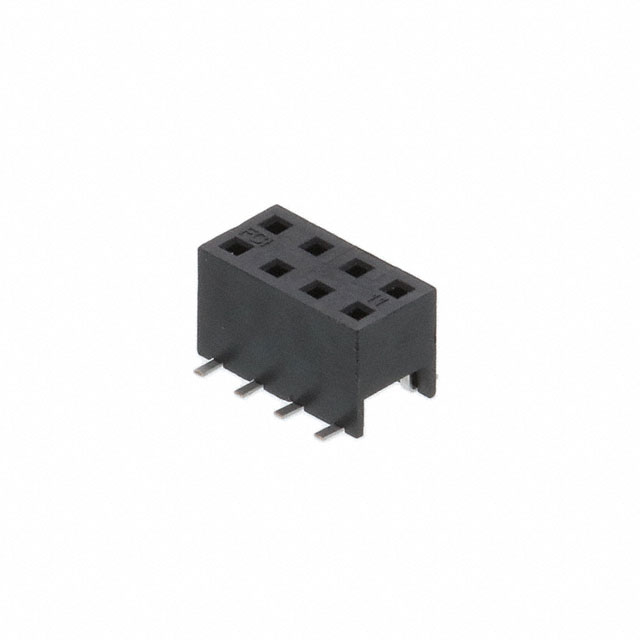

Amphenol ICC (FCI) 55510-108TRLF
Image shown is a representation only
Manufacturer
Manufacturer No
55510-108TRLF
Quantity
10
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN RCPT 8POS 0.079 GOLD SMD
Detailed Description
8 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
DataSheet
Mfr
Amphenol ICC (FCI)
Style
Board to Board
Series
Minitek® 2.00mm
Features
Pick and Place
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
Solder
Applications
General Purpose, Industrial, Medical
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
200V
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.177" (4.50mm)
Base Product Number
55510
Insulation Material
Plastic
Number of Positions
8
Row Spacing - Mating
0.079" (2.00mm)
Contact Finish - Post
Tin
Current Rating (Amps)
2A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (FCI) |
| Style | Board to Board |
| Series | Minitek® 2.00mm |
| Features | Pick and Place |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose, Industrial, Medical |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 200V |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.177" (4.50mm) |
| Base Product Number | 55510 |
| Insulation Material | Plastic |
| Number of Positions | 8 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 2A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
