Step1: Product
Amphenol ICC (FCI) 20021111-00010T4LF

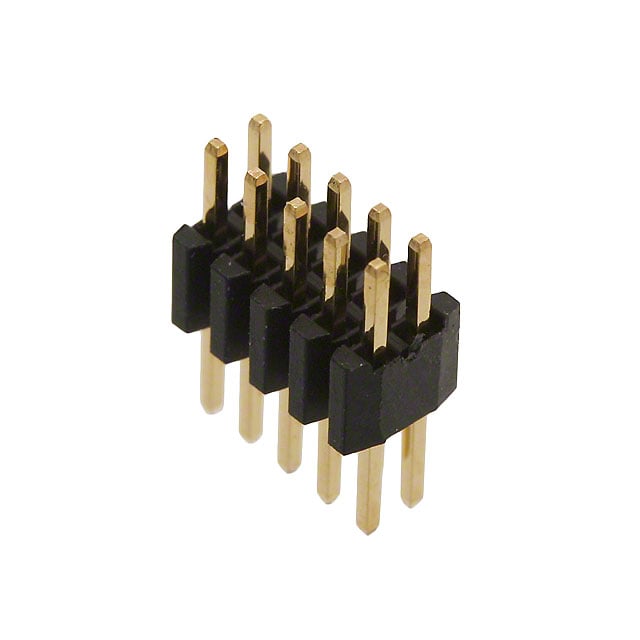

Image shown is a representation only
Manufacturer
Manufacturer No
20021111-00010T4LF
Quantity
1199
Availability
In Stock
Packaging
Tube
Description
CONN HEADER VERT 10POS 1.27MM
Detailed Description
Connector Header Through Hole 10 position 0.050" (1.27mm)
DataSheet
Mfr
Amphenol ICC (FCI)
Style
Board to Board
Series
Minitek127® 1.27mm
Packaging
Tube
Shrouding
Unshrouded
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.050" (1.27mm)
Voltage Rating
125VAC
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.098" (2.50mm)
Base Product Number
20021111
Insulation Material
Thermoplastic
Number of Positions
10
Row Spacing - Mating
0.050" (1.27mm)
Contact Finish - Post
Tin
Contact Length - Post
0.091" (2.30mm)
Current Rating (Amps)
1A per Contact
Operating Temperature
-55°C ~ 125°C
Overall Contact Length
0.309" (7.86mm)
Contact Finish - Mating
Gold
Contact Length - Mating
0.120" (3.05mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
50.0µin (1.27µm)
Contact Finish Thickness - Mating
10.0µin (0.25µm)
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (FCI) |
| Style | Board to Board |
| Series | Minitek127® 1.27mm |
| Packaging | Tube |
| Shrouding | Unshrouded |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.050" (1.27mm) |
| Voltage Rating | 125VAC |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.098" (2.50mm) |
| Base Product Number | 20021111 |
| Insulation Material | Thermoplastic |
| Number of Positions | 10 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.091" (2.30mm) |
| Current Rating (Amps) | 1A per Contact |
| Operating Temperature | -55°C ~ 125°C |
| Overall Contact Length | 0.309" (7.86mm) |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.120" (3.05mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 50.0µin (1.27µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
