Step1: Product

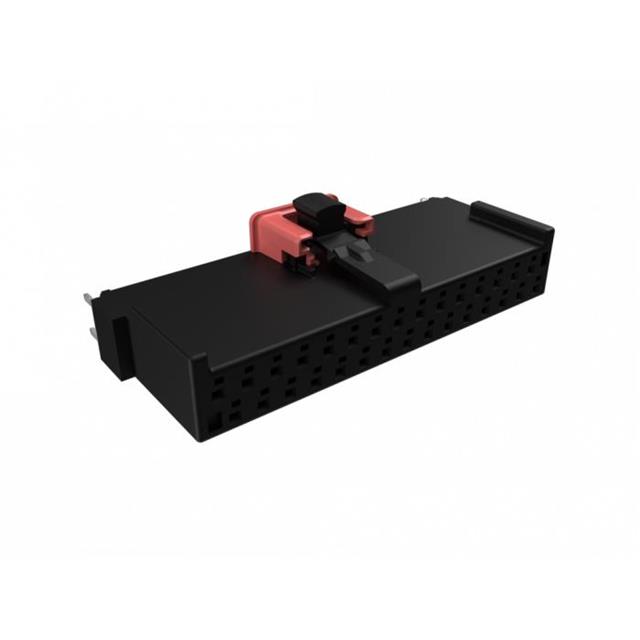

Amphenol ICC (FCI) 10161735-V302011LF
Image shown is a representation only
Manufacturer
Manufacturer No
10161735-V302011LF
Quantity
6
Availability
In Stock
Packaging
Tray
Description
FLEXLOCK 2.54MM 30P,VT,THT,RECEP
Detailed Description
30 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
DataSheet
Mfr
Amphenol ICC (FCI)
Style
Board to Board
Series
FlexLock®
Features
Board Guide, Connector Position Assurance (CPA), Solder Retention
Packaging
Tray
Part Status
Active
Termination
Solder
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Receptacle
Fastening Type
Latch Lock
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
150V
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.661" (16.80mm)
Base Product Number
10161735
Insulation Material
Thermoplastic
Number of Positions
30
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Contact Length - Post
0.085" (2.16mm)
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
80.0µin (2.03µm)
Contact Finish Thickness - Mating
80.0µin (2.03µm)
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (FCI) |
| Style | Board to Board |
| Series | FlexLock® |
| Features | Board Guide, Connector Position Assurance (CPA), Solder Retention |
| Packaging | Tray |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Receptacle |
| Fastening Type | Latch Lock |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 150V |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.661" (16.80mm) |
| Base Product Number | 10161735 |
| Insulation Material | Thermoplastic |
| Number of Positions | 30 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.085" (2.16mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 80.0µin (2.03µm) |
| Contact Finish Thickness - Mating | 80.0µin (2.03µm) |
