Step1: Product

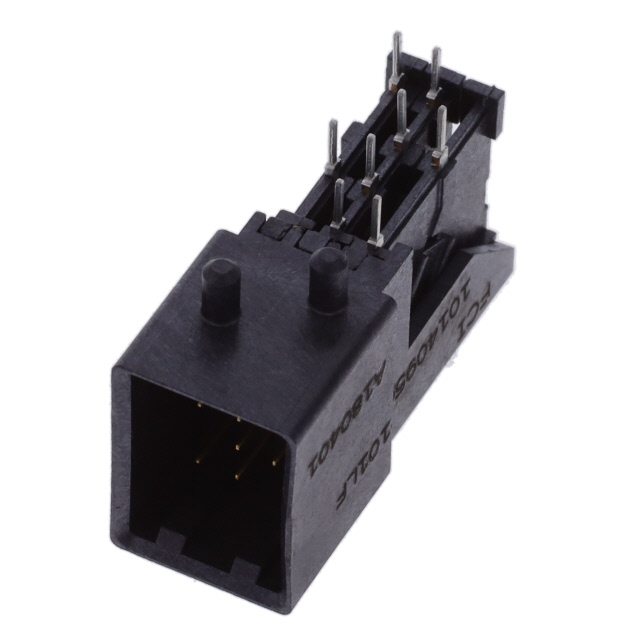

Amphenol ICC (FCI) 10140950-101LF
Image shown is a representation only
Manufacturer
Manufacturer No
10140950-101LF
Packaging
Cut Tape (CT)
Description
CONN HEADER R/A 12POS 2MM
Detailed Description
Connector Header Through Hole, Right Angle 12 position 0.079" (2.00mm)
DataSheet
Mfr
Amphenol ICC (FCI)
Style
Board to Cable/Wire
Series
Verio™
Features
Board Guide
Packaging
Cut Tape (CT)
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Rectangular
Mounting Type
Through Hole, Right Angle
Connector Type
Plug
Fastening Type
Latch Holder
Number of Rows
4
Pitch - Mating
0.079" (2.00mm)
Contact Material
Copper Alloy
Insulation Height
0.492" (12.50mm)
Ingress Protection
IP67
Base Product Number
10140950
Insulation Material
Liquid Crystal Polymer (LCP), Glass Filled
Number of Positions
12
Row Spacing - Mating
0.079" (2.00mm)
Contact Finish - Post
Tin
Contact Length - Post
0.106" (2.69mm)
Contact Finish - Mating
Gold
Contact Length - Mating
0.169" (4.30mm)
Number of Positions Loaded
8
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (FCI) |
| Style | Board to Cable/Wire |
| Series | Verio™ |
| Features | Board Guide |
| Packaging | Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Rectangular |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Plug |
| Fastening Type | Latch Holder |
| Number of Rows | 4 |
| Pitch - Mating | 0.079" (2.00mm) |
| Contact Material | Copper Alloy |
| Insulation Height | 0.492" (12.50mm) |
| Ingress Protection | IP67 |
| Base Product Number | 10140950 |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Number of Positions | 12 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.106" (2.69mm) |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.169" (4.30mm) |
| Number of Positions Loaded | 8 |
| Material Flammability Rating | UL94 V-0 |
