Step1: Product
Amphenol ICC (FCI) 10140949-101LF

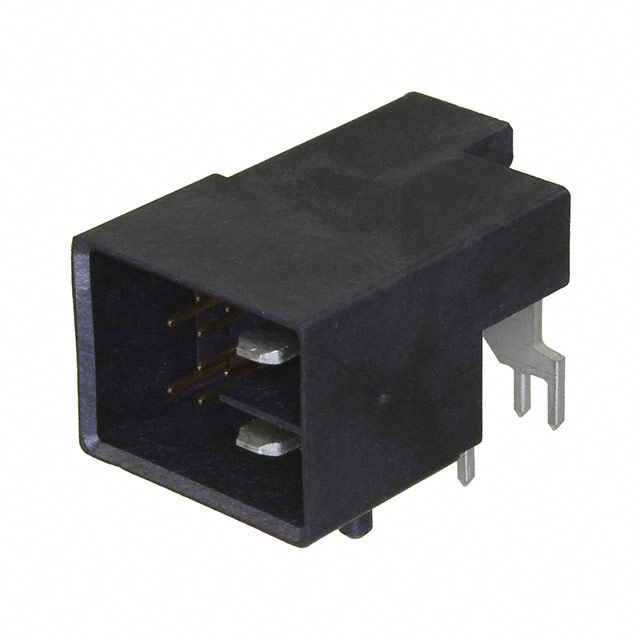

Image shown is a representation only
Manufacturer
Manufacturer No
10140949-101LF
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN HEADER R/A 14POS
Detailed Description
Connector Header Through Hole, Right Angle 14 (12 + 2 Power) position
DataSheet
Mfr
Amphenol ICC (FCI)
Style
Board to Cable/Wire
Series
Verio™
Features
Board Guide
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Blade
Mounting Type
Through Hole, Right Angle
Connector Type
Plug
Fastening Type
Latch Holder
Contact Material
Copper Alloy
Insulation Height
0.492" (12.50mm)
Ingress Protection
IP67
Base Product Number
10140949
Insulation Material
Liquid Crystal Polymer (LCP), Glass Filled
Number of Positions
14 (12 + 2 Power)
Contact Finish - Post
Tin
Contact Length - Post
0.106" (2.69mm)
Operating Temperature
-55°C ~ 85°C
Contact Finish - Mating
Gold
Number of Positions Loaded
10
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (FCI) |
| Style | Board to Cable/Wire |
| Series | Verio™ |
| Features | Board Guide |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Blade |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Plug |
| Fastening Type | Latch Holder |
| Contact Material | Copper Alloy |
| Insulation Height | 0.492" (12.50mm) |
| Ingress Protection | IP67 |
| Base Product Number | 10140949 |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Number of Positions | 14 (12 + 2 Power) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.106" (2.69mm) |
| Operating Temperature | -55°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | 10 |
| Material Flammability Rating | UL94 V-0 |
