Step1: Product

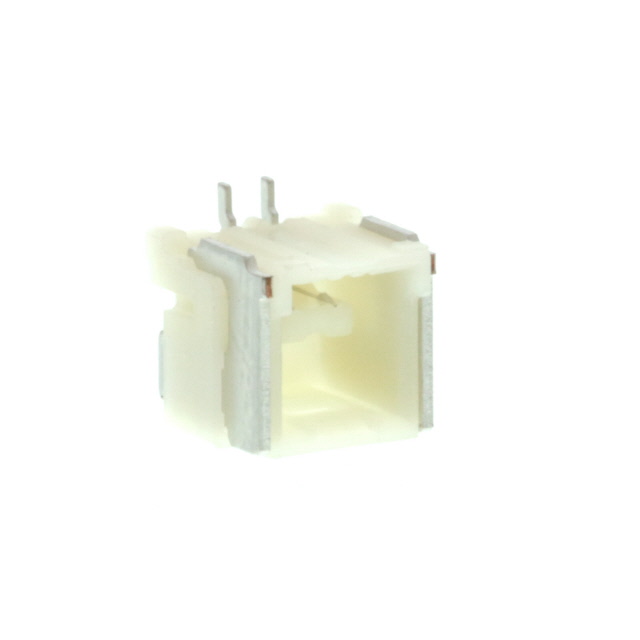

Amphenol ICC (FCI) 10135177-02111LF
Image shown is a representation only
Manufacturer
Manufacturer No
10135177-02111LF
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN RCPT 2POS 0.059 TIN SMD
Detailed Description
2 Position Receptacle Connector 0.059" (1.50mm) Surface Mount Tin
DataSheet
Mfr
Amphenol ICC (FCI)
Style
Board to Cable/Wire
Series
Minitek® 1.50mm
Features
Pick and Place, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
Solder
Contact Type
Forked
Mounting Type
Surface Mount
Connector Type
Receptacle
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.059" (1.50mm)
Voltage Rating
100V
Contact Material
Copper Alloy
Insulation Height
0.254" (6.45mm)
Base Product Number
10135177
Insulation Material
Liquid Crystal Polymer (LCP); Polyamide (PA6T), Nylon 6T
Number of Positions
2
Contact Finish - Post
Tin
Current Rating (Amps)
2A
Operating Temperature
-40°C ~ 125°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (FCI) |
| Style | Board to Cable/Wire |
| Series | Minitek® 1.50mm |
| Features | Pick and Place, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Forked |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.059" (1.50mm) |
| Voltage Rating | 100V |
| Contact Material | Copper Alloy |
| Insulation Height | 0.254" (6.45mm) |
| Base Product Number | 10135177 |
| Insulation Material | Liquid Crystal Polymer (LCP); Polyamide (PA6T), Nylon 6T |
| Number of Positions | 2 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 2A |
| Operating Temperature | -40°C ~ 125°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
