Step1: Product
Amphenol ICC (FCI) 10070158-00119XLF

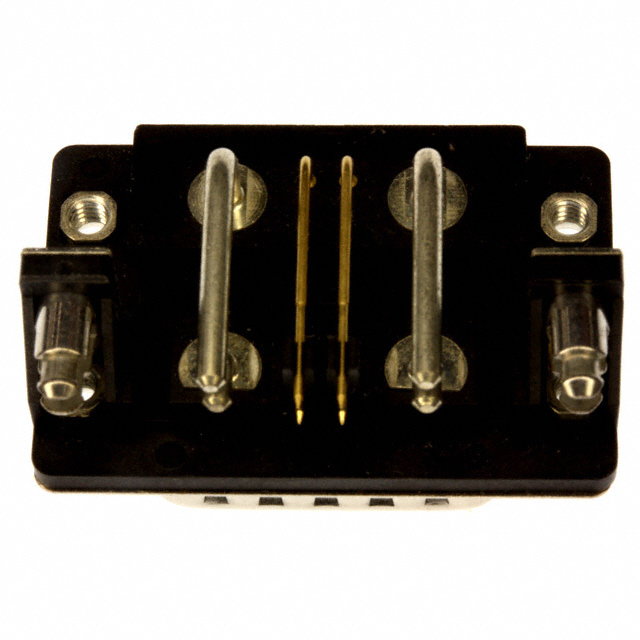

Image shown is a representation only
Manufacturer
Manufacturer No
10070158-00119XLF
Packaging
Box
Description
CONN D-SUB PLUG 4X2POS R/A SLDR
Detailed Description
4 (2 + 2 Power) x 2 Position D-Sub, Combo - Stacked Plug, Male Pins Connector
Datasheet
Mfr
Amphenol ICC (FCI)
Series
MicroTCA™
Features
Board Lock, Grounding Indents, Mounting Brackets
Packaging
Box
Termination
Solder
Contact Type
Signal and Power
Mounting Type
Board Cutout, Through Hole, Right Angle
Connector Type
Plug, Male Pins
Contact Finish
Gold
Flange Feature
Housing/Shell (4-40)
Number of Rows
1,1
Voltage Rating
48V
Backset Spacing
0.201" (5.10mm)
Connector Style
D-Sub, Combo - Stacked
Contact Material
Copper Alloy
Base Product Number
10070158
Dielectric Material
Thermoplastic
Number of Positions
4 (2 + 2 Power) x 2
Current Rating (Amps)
0.375A, 24A
Operating Temperature
-55°C ~ 125°C
Shell Material, Finish
Steel, Nickel Plated
Shell Size, Connector Layout
2 (DA, A) - 4W2; 2 (DA, A) - 4W2
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (FCI) |
| Series | MicroTCA™ |
| Features | Board Lock, Grounding Indents, Mounting Brackets |
| Packaging | Box |
| Termination | Solder |
| Contact Type | Signal and Power |
| Mounting Type | Board Cutout, Through Hole, Right Angle |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (4-40) |
| Number of Rows | 1,1 |
| Voltage Rating | 48V |
| Backset Spacing | 0.201" (5.10mm) |
| Connector Style | D-Sub, Combo - Stacked |
| Contact Material | Copper Alloy |
| Base Product Number | 10070158 |
| Dielectric Material | Thermoplastic |
| Number of Positions | 4 (2 + 2 Power) x 2 |
| Current Rating (Amps) | 0.375A, 24A |
| Operating Temperature | -55°C ~ 125°C |
| Shell Material, Finish | Steel, Nickel Plated |
| Shell Size, Connector Layout | 2 (DA, A) - 4W2; 2 (DA, A) - 4W2 |
