Step1: Product
Amphenol ICC (FCI) 10022753-014LF

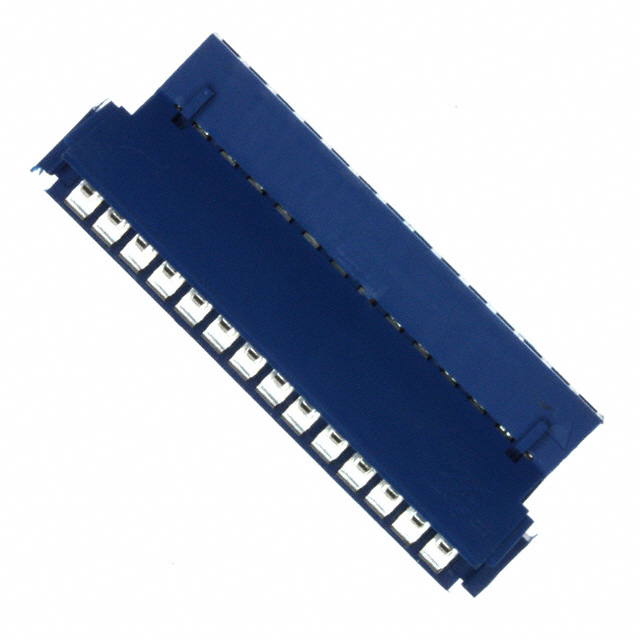

Image shown is a representation only
Manufacturer
Manufacturer No
10022753-014LF
Packaging
Tray
Description
CONN FFC FPC RCPT 14POS 2.54MM
Detailed Description
14 Position FFC, FPC Connector Receptacle 0.100" (2.54mm) Free Hanging (In-Line)
DataSheet
Pitch
0.100" (2.54mm)
Series
Clincher™
Packaging
Tray
Part Status
Obsolete
Termination
IDC
Manufacturer
Amphenol ICC (FCI)
Housing Color
Blue
Mating Cycles
100
Mounting Type
Free Hanging (In-Line)
Contact Finish
Tin
Flat Flex Type
FFC, FPC
Voltage Rating
500V
Locking Feature
Latch Lock
Contact Material
Copper Nickel Alloy
Housing Material
Thermoplastic
FFC, FCB Thickness
0.33mm
Base Product Number
10022753
Number of Positions
14
Current Rating (Amps)
2A per Contact
Operating Temperature
-65°C ~ 105°C
Connector/Contact Type
Receptacle
Contact Finish Thickness
100.0µin (2.54µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm) |
| Series | Clincher™ |
| Packaging | Tray |
| Part Status | Obsolete |
| Termination | IDC |
| Manufacturer | Amphenol ICC (FCI) |
| Housing Color | Blue |
| Mating Cycles | 100 |
| Mounting Type | Free Hanging (In-Line) |
| Contact Finish | Tin |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 500V |
| Locking Feature | Latch Lock |
| Contact Material | Copper Nickel Alloy |
| Housing Material | Thermoplastic |
| FFC, FCB Thickness | 0.33mm |
| Base Product Number | 10022753 |
| Number of Positions | 14 |
| Current Rating (Amps) | 2A per Contact |
| Operating Temperature | -65°C ~ 105°C |
| Connector/Contact Type | Receptacle |
| Contact Finish Thickness | 100.0µin (2.54µm) |
| Material Flammability Rating | UL94 V-0 |
