Amphenol ICC (Commercial Products) VNTBR22Z2001SR

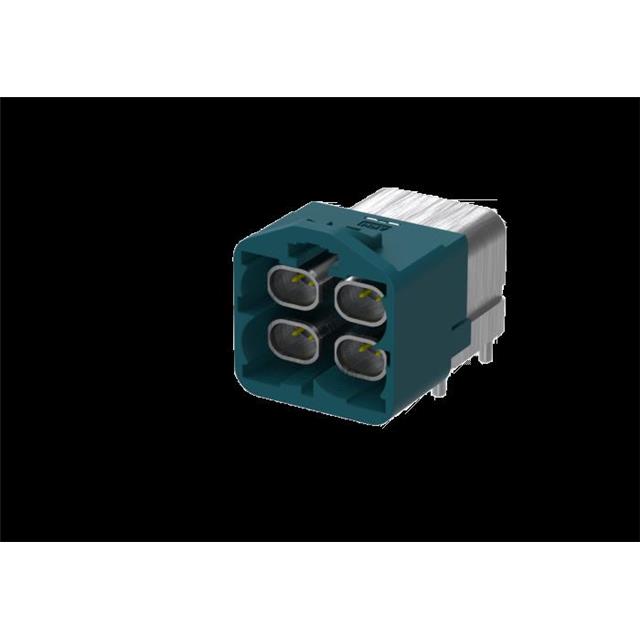

Image shown is a representation only
Manufacturer
Manufacturer No
VNTBR22Z2001SR
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
VE-NET, 2X2, RA, UNSEAL, Z CODE
Detailed Description
Connector Header Through Hole, Right Angle 8 position
DataSheet
Mfr
Amphenol ICC (Commercial Products)
Style
Board to Cable/Wire
Series
Ve-Net
Features
Board Guide
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
2
Contact Material
Copper Alloy
Insulation Color
Blue
Insulation Height
0.783" (19.89mm)
Insulation Material
Polyamide (PA10T), Nylon 10T
Number of Positions
8
Row Spacing - Mating
0.236" (6.00mm)
Contact Finish - Post
Tin
Contact Length - Post
0.083" (2.10mm)
Current Rating (Amps)
1.5A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
78.7µin (2.00µm)
Contact Finish Thickness - Mating
5.90µin (0.150µm)
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (Commercial Products) |
| Style | Board to Cable/Wire |
| Series | Ve-Net |
| Features | Board Guide |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Contact Material | Copper Alloy |
| Insulation Color | Blue |
| Insulation Height | 0.783" (19.89mm) |
| Insulation Material | Polyamide (PA10T), Nylon 10T |
| Number of Positions | 8 |
| Row Spacing - Mating | 0.236" (6.00mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.083" (2.10mm) |
| Current Rating (Amps) | 1.5A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 5.90µin (0.150µm) |
