Amphenol ICC (Commercial Products) G800W303018EU

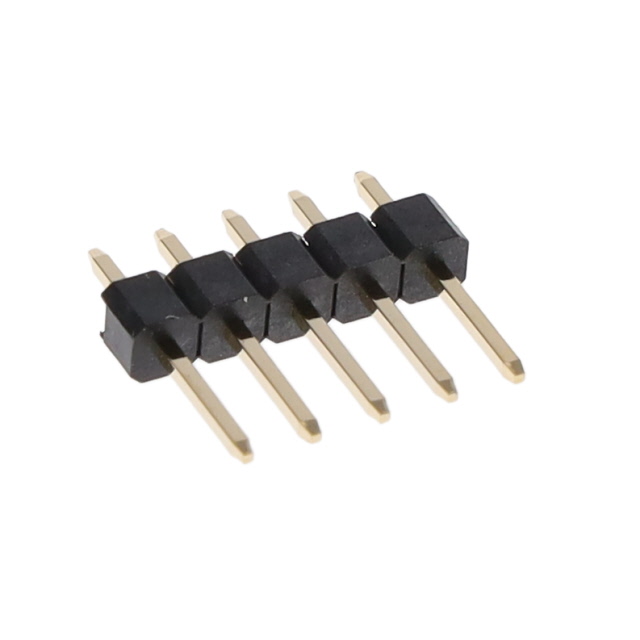

Image shown is a representation only
Manufacturer
Manufacturer No
G800W303018EU
Quantity
100
Availability
In Stock
Packaging
Bag
Description
PIN HEADER 2.54MM PITCH STR DIP,
Detailed Description
Connector Header Through Hole 5 position 0.100" (2.54mm)
DataSheet
Mfr
Amphenol ICC (Commercial Products)
Style
Board to Board
Series
BTB G800®
Packaging
Bag
Shrouding
Unshrouded
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
250VDC
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.098" (2.50mm)
Base Product Number
G800W30
Insulation Material
Polyamide (PA6T), Nylon 6T
Number of Positions
5
Contact Finish - Post
Gold
Contact Length - Post
0.118" (3.00mm)
Current Rating (Amps)
3A per Contact
Operating Temperature
-25°C ~ 105°C
Overall Contact Length
0.457" (11.60mm)
Contact Finish - Mating
Gold
Contact Length - Mating
0.240" (6.10mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
Flash
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (Commercial Products) |
| Style | Board to Board |
| Series | BTB G800® |
| Packaging | Bag |
| Shrouding | Unshrouded |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 250VDC |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.098" (2.50mm) |
| Base Product Number | G800W30 |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Number of Positions | 5 |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.118" (3.00mm) |
| Current Rating (Amps) | 3A per Contact |
| Operating Temperature | -25°C ~ 105°C |
| Overall Contact Length | 0.457" (11.60mm) |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.240" (6.10mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash |
