Step1: Product
Amphenol ICC (Commercial Products) G881A18122RT3EU

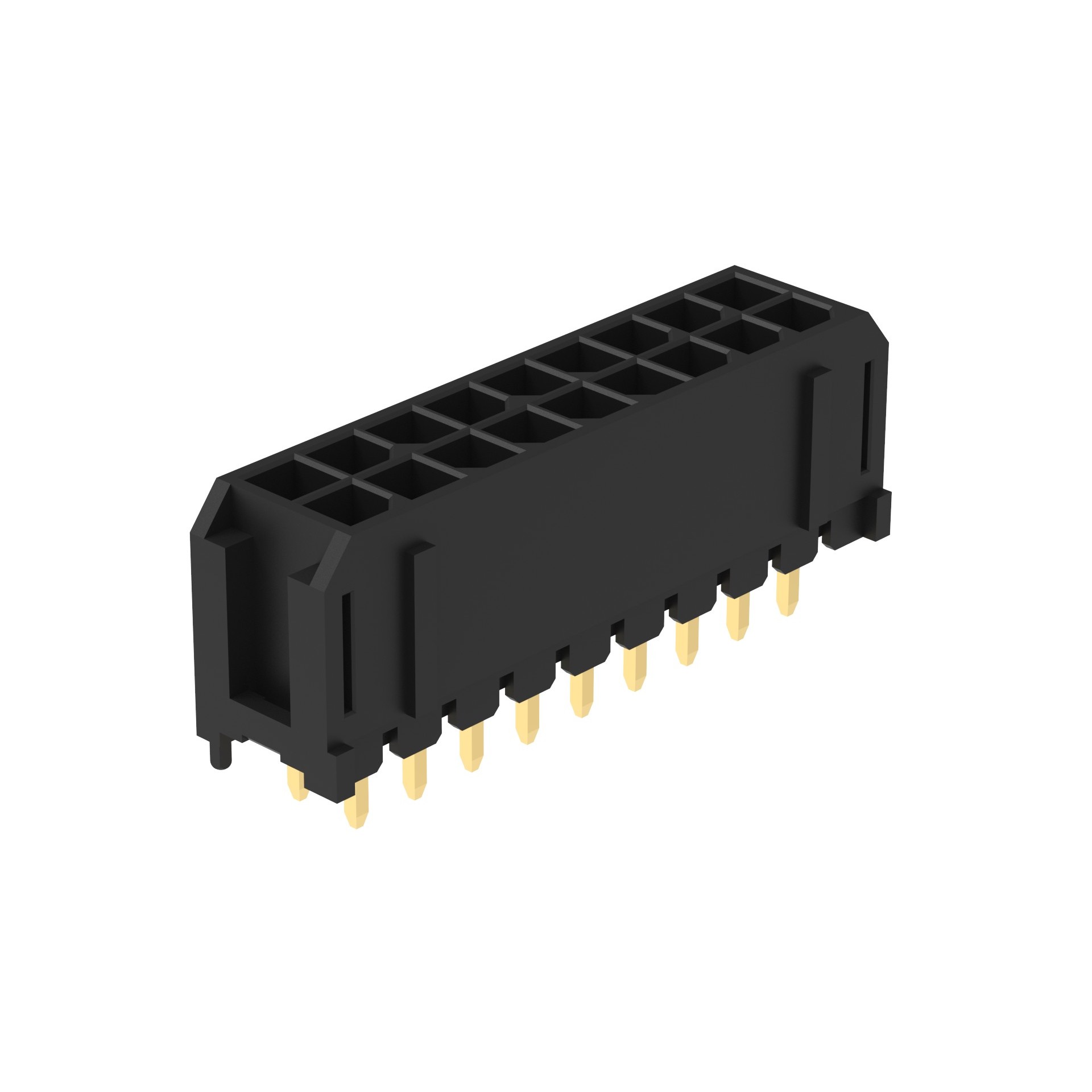

Image shown is a representation only
Manufacturer
Manufacturer No
G881A18122RT3EU
Packaging
Tape & Reel (TR)
Description
G881A18122RT3EU-MICRO POWER P=3.
Detailed Description
Connector Header Through Hole 18 position 0.118" (3.00mm)
DataSheet
Mfr
Amphenol ICC (Commercial Products)
Style
Board to Cable/Wire
Series
G881
Features
Pick and Place
Packaging
Tape & Reel (TR)
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
2
Pitch - Mating
0.118" (3.00mm)
Voltage Rating
250VAC
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.433" (11.00mm)
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
18
Row Spacing - Mating
0.118" (3.00mm)
Contact Finish - Post
Gold
Contact Length - Post
0.126" (3.20mm)
Current Rating (Amps)
7A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
15.0µin (0.38µm)
Contact Finish Thickness - Mating
15.0µin (0.38µm)
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (Commercial Products) |
| Style | Board to Cable/Wire |
| Series | G881 |
| Features | Pick and Place |
| Packaging | Tape & Reel (TR) |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 2 |
| Pitch - Mating | 0.118" (3.00mm) |
| Voltage Rating | 250VAC |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.433" (11.00mm) |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 18 |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.126" (3.20mm) |
| Current Rating (Amps) | 7A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 15.0µin (0.38µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
