Step1: Product

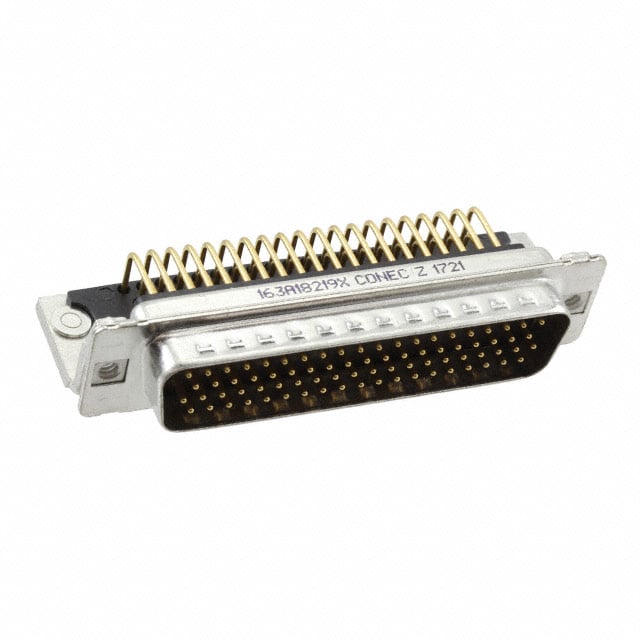

Amphenol CONEC 163A18219X
Image shown is a representation only
Manufacturer
Manufacturer No
163A18219X
Quantity
1
Availability
In Stock
Packaging
Bulk
Description
CONN D-SUB HD PLG 78POS R/A SLDR
Detailed Description
78 Position D-Sub, High Density Plug, Male Pins Connector
Datasheet
Mfr
Amphenol CONEC
Color
Black
Series
163A
Features
Board Lock, Grounding Indents
Packaging
Bulk
Termination
Solder
Contact Form
Machined
Contact Type
Signal
Mounting Type
Board Edge, Through Hole, Right Angle
Connector Type
Plug, Male Pins
Contact Finish
Gold
Flange Feature
Housing/Shell (4-40)
Number of Rows
4
Voltage Rating
60V
Backset Spacing
0.314" (7.98mm)
Connector Style
D-Sub, High Density
Contact Material
Copper Alloy
Ingress Protection
IP20
Base Product Number
163A182
Dielectric Material
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions
78
Current Rating (Amps)
3A
Operating Temperature
-55°C ~ 125°C
Shell Material, Finish
Steel, Tin Plated
Contact Finish Thickness
8.00µin (0.203µm)
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
5 (DD, D) High Density
| Attribute | Value |
|---|---|
| Mfr | Amphenol CONEC |
| Color | Black |
| Series | 163A |
| Features | Board Lock, Grounding Indents |
| Packaging | Bulk |
| Termination | Solder |
| Contact Form | Machined |
| Contact Type | Signal |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (4-40) |
| Number of Rows | 4 |
| Voltage Rating | 60V |
| Backset Spacing | 0.314" (7.98mm) |
| Connector Style | D-Sub, High Density |
| Contact Material | Copper Alloy |
| Ingress Protection | IP20 |
| Base Product Number | 163A182 |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 78 |
| Current Rating (Amps) | 3A |
| Operating Temperature | -55°C ~ 125°C |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 8.00µin (0.203µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 5 (DD, D) High Density |
