Step1: Product

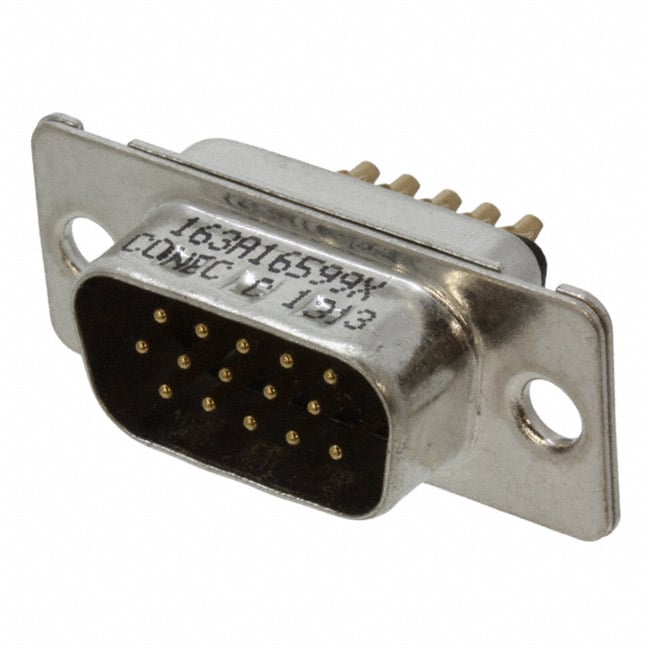

Amphenol CONEC 163A16599X
Image shown is a representation only
Manufacturer
Manufacturer No
163A16599X
Quantity
5
Availability
In Stock
Packaging
Bulk
Description
CONN D-SUB HD PLG 15POS SLDR CUP
Detailed Description
15 Position D-Sub, High Density Plug, Male Pins Connector
Datasheet
Mfr
Amphenol CONEC
Color
Black
Series
163A
Features
Grounding Indents
Packaging
Bulk
Wire Gauge
22 AWG
Termination
Solder Cup
Contact Type
Signal
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pins
Contact Finish
Gold
Flange Feature
Housing/Shell (Unthreaded)
Number of Rows
3
Voltage Rating
60V
Connector Style
D-Sub, High Density
Contact Material
Copper Alloy
Ingress Protection
IP20
Base Product Number
163A165
Dielectric Material
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions
15
Current Rating (Amps)
3A
Operating Temperature
-55°C ~ 125°C
Shell Material, Finish
Steel, Tin Plated
Contact Finish Thickness
Flash
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
1 (DE, E) High Density
| Attribute | Value |
|---|---|
| Mfr | Amphenol CONEC |
| Color | Black |
| Series | 163A |
| Features | Grounding Indents |
| Packaging | Bulk |
| Wire Gauge | 22 AWG |
| Termination | Solder Cup |
| Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 3 |
| Voltage Rating | 60V |
| Connector Style | D-Sub, High Density |
| Contact Material | Copper Alloy |
| Ingress Protection | IP20 |
| Base Product Number | 163A165 |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 15 |
| Current Rating (Amps) | 3A |
| Operating Temperature | -55°C ~ 125°C |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | Flash |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 1 (DE, E) High Density |
