Step1: Product

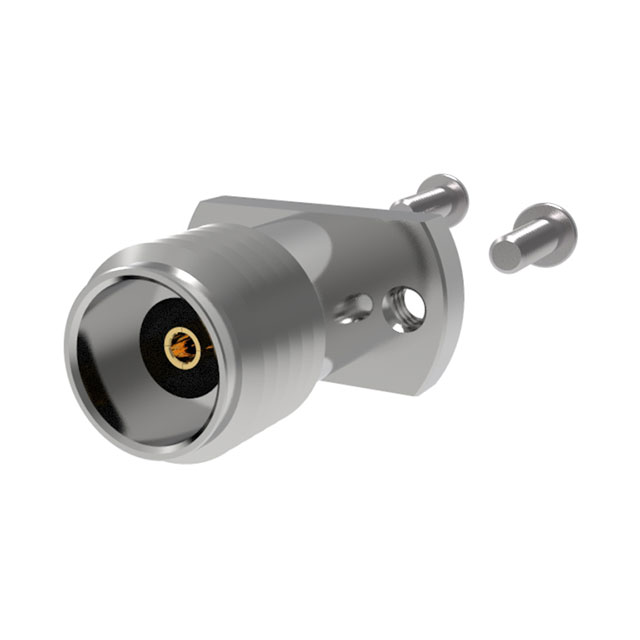

Amphenol CDI TMB-V9F2-3L1
Image shown is a representation only
Manufacturer
Manufacturer No
TMB-V9F2-3L1
Packaging
Tray
Description
2.92(F)2-H,VL,FIELDREP
Detailed Description
2.92mm Connector Jack, Female Socket 50 Ohms Surface Mount Compression
DataSheet
Mfr
Amphenol CDI
Features
Field Replaceable, For Hermetically Sealed Pin
Impedance
50 Ohms
Packaging
Tray
Part Status
Active
Body Material
Stainless Steel
Housing Color
Silver
Mating Cycles
500
Mounting Type
Surface Mount
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Insertion Loss
0.38dB
Voltage Rating
500 V
Connector Style
2.92mm
Frequency - Max
40 GHz
Number of Ports
1
Mounting Feature
Flange
Shield Termination
Screw
Base Product Number
TMB-V9
Contact Termination
Compression
Dielectric Material
Polychlorotrifluoroethylene (PCTFE)
Operating Temperature
-55°C ~ 85°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Amphenol CDI |
| Features | Field Replaceable, For Hermetically Sealed Pin |
| Impedance | 50 Ohms |
| Packaging | Tray |
| Part Status | Active |
| Body Material | Stainless Steel |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Surface Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Insertion Loss | 0.38dB |
| Voltage Rating | 500 V |
| Connector Style | 2.92mm |
| Frequency - Max | 40 GHz |
| Number of Ports | 1 |
| Mounting Feature | Flange |
| Shield Termination | Screw |
| Base Product Number | TMB-V9 |
| Contact Termination | Compression |
| Dielectric Material | Polychlorotrifluoroethylene (PCTFE) |
| Operating Temperature | -55°C ~ 85°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
