Step1: Product

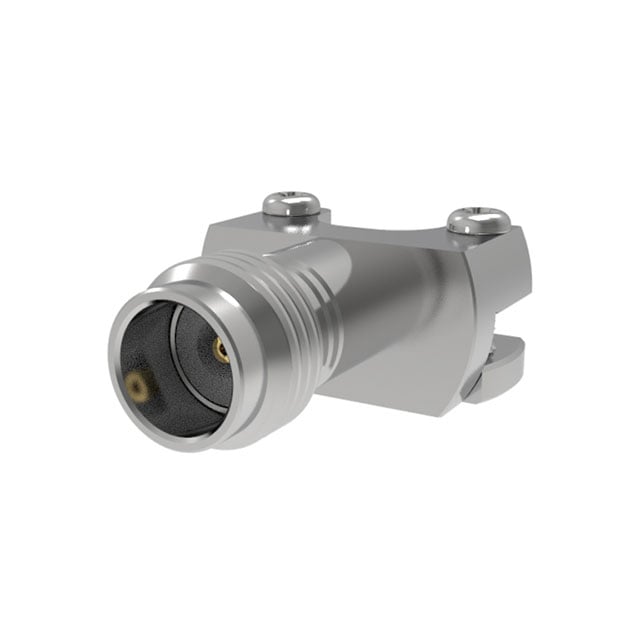

Amphenol CDI TMB-E4F2-1L1
Image shown is a representation only
Manufacturer
Manufacturer No
TMB-E4F2-1L1
Packaging
Tray
Description
2.4(F)2-H,EL,FIELDREP
Detailed Description
2.4mm (APC-2.4, OS-50) Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Compression
Datasheet
Mfr
Amphenol CDI
Features
Field Replaceable, For Hermetically Sealed Pin
Impedance
50 Ohms
Packaging
Tray
Body Material
Stainless Steel
Housing Color
Silver
Mating Cycles
500
Mounting Type
Board Edge, End Launch
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Insertion Loss
0.2dB
Voltage Rating
400 V
Connector Style
2.4mm (APC-2.4, OS-50)
Frequency - Max
50 GHz
Number of Ports
1
Shield Termination
Screw
Base Product Number
TMB-E4
Contact Termination
Compression
Dielectric Material
Polychlorotrifluoroethylene (PCTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Amphenol CDI |
| Features | Field Replaceable, For Hermetically Sealed Pin |
| Impedance | 50 Ohms |
| Packaging | Tray |
| Body Material | Stainless Steel |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Board Edge, End Launch |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Insertion Loss | 0.2dB |
| Voltage Rating | 400 V |
| Connector Style | 2.4mm (APC-2.4, OS-50) |
| Frequency - Max | 50 GHz |
| Number of Ports | 1 |
| Shield Termination | Screw |
| Base Product Number | TMB-E4 |
| Contact Termination | Compression |
| Dielectric Material | Polychlorotrifluoroethylene (PCTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
