Step1: Product

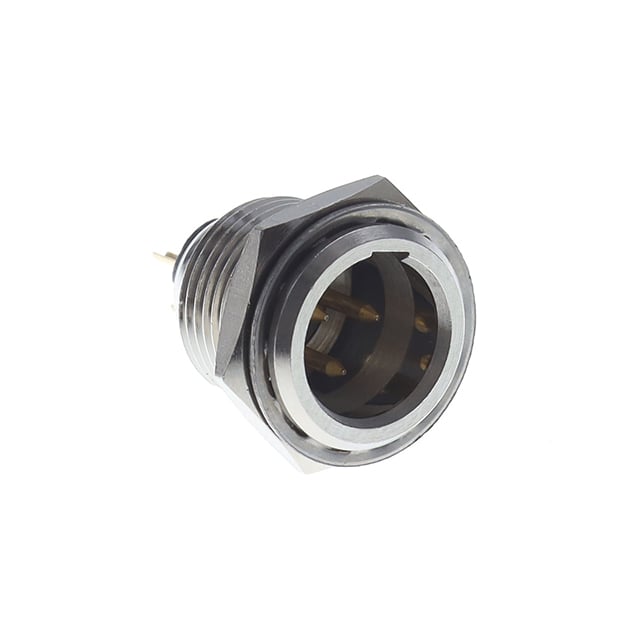

Amphenol Audio AG3MCC
Image shown is a representation only
Manufacturer
Manufacturer No
AG3MCC
Quantity
25
Availability
In Stock
Packaging
Bulk
Description
CONN RCPT MALE MINI XLR 3POS SLD
Detailed Description
3 Position Circular Connector Receptacle, Male Pins Solder Cup
DataSheet
Mfr
Amphenol Audio
Color
Silver
Series
mini XLR G Type™
Packaging
Bulk
Shielding
Unshielded
Orientation
Keyed
Part Status
Active
Termination
Solder Cup
Applications
Audio
Shell Finish
Nickel
Mounting Type
Panel Mount
Connector Type
Receptacle, Male Pins
Fastening Type
Latch Holder
Shell Material
Brass
Insert Material
Polyphenylene Sulfide (PPS)
Contact Material
Brass
Mounting Feature
Bulkhead - Rear Side Nut
Primary Material
Metal
Ingress Protection
IP40
Base Product Number
AG3
Number of Positions
3
Shell Size - Insert
Mini XLR
Current Rating (Amps)
5A
Operating Temperature
-30°C ~ 80°C
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 HB
| Attribute | Value |
|---|---|
| Mfr | Amphenol Audio |
| Color | Silver |
| Series | mini XLR G Type™ |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | Keyed |
| Part Status | Active |
| Termination | Solder Cup |
| Applications | Audio |
| Shell Finish | Nickel |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Latch Holder |
| Shell Material | Brass |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Contact Material | Brass |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Primary Material | Metal |
| Ingress Protection | IP40 |
| Base Product Number | AG3 |
| Number of Positions | 3 |
| Shell Size - Insert | Mini XLR |
| Current Rating (Amps) | 5A |
| Operating Temperature | -30°C ~ 80°C |
| Contact Finish - Mating | Gold |
| Material Flammability Rating | UL94 HB |
