Step1: Product

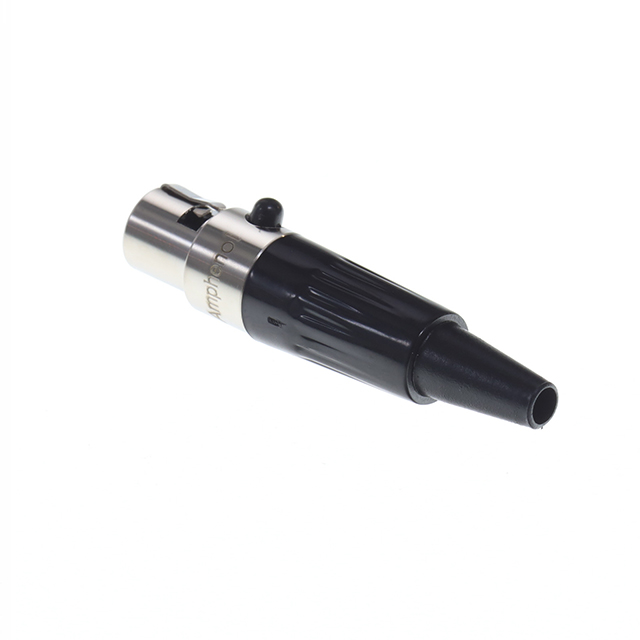

Amphenol Audio AG3F
Image shown is a representation only
Manufacturer
Manufacturer No
AG3F
Quantity
3
Availability
In Stock
Packaging
Bulk
Description
CONN PLUG FMALE MINI XLR 3P SLDR
Detailed Description
3 Position Circular Connector Plug, Female Sockets Solder Cup
DataSheet
Mfr
Amphenol Audio
Color
Silver
Series
mini XLR G Type™
Features
Backshell, Cable Clamp
Packaging
Bulk
Shielding
Unshielded
Orientation
Keyed
Part Status
Active
Termination
Solder Cup
Applications
Audio
Shell Finish
Nickel
Cable Opening
0.138" (3.50mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Female Sockets
Fastening Type
Latch Lock
Shell Material
Brass
Insert Material
Polyphenylene Sulfide (PPS)
Contact Material
Phosphor Bronze
Primary Material
Metal
Ingress Protection
IP40
Base Product Number
AG3
Number of Positions
3
Shell Size - Insert
Mini XLR
Current Rating (Amps)
5A
Operating Temperature
-30°C ~ 80°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Polyacrylonitrile Butadiene Styrene (ABS)
Material Flammability Rating
UL94 HB
| Attribute | Value |
|---|---|
| Mfr | Amphenol Audio |
| Color | Silver |
| Series | mini XLR G Type™ |
| Features | Backshell, Cable Clamp |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | Keyed |
| Part Status | Active |
| Termination | Solder Cup |
| Applications | Audio |
| Shell Finish | Nickel |
| Cable Opening | 0.138" (3.50mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Latch Lock |
| Shell Material | Brass |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Contact Material | Phosphor Bronze |
| Primary Material | Metal |
| Ingress Protection | IP40 |
| Base Product Number | AG3 |
| Number of Positions | 3 |
| Shell Size - Insert | Mini XLR |
| Current Rating (Amps) | 5A |
| Operating Temperature | -30°C ~ 80°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Polyacrylonitrile Butadiene Styrene (ABS) |
| Material Flammability Rating | UL94 HB |
