Step1: Product
Amgis, LLC SWS-0.9-330

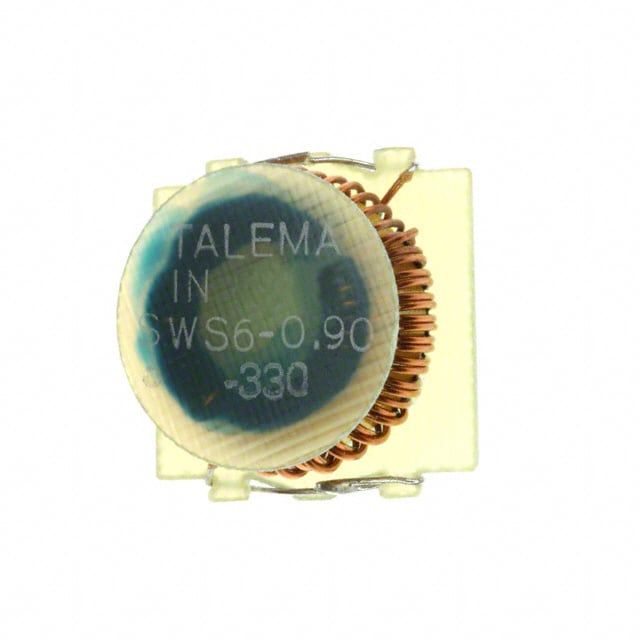

Image shown is a representation only
Manufacturer
Manufacturer No
SWS-0.9-330
Package
Nonstandard
Packaging
Tape & Reel (TR)
Description
FIXED IND 330UH 900MA 180 MOHM
Detailed Description
330 µH Unshielded Toroidal Inductor 900 mA 180mOhm Max Nonstandard
DataSheet
Mfr
Amgis, LLC
Type
Toroidal
Series
SW
Packaging
Tape & Reel (TR)
Shielding
Unshielded
Tolerance
±20%
Inductance
330 µH
Part Status
Obsolete
Mounting Type
Surface Mount
Package / Case
Nonstandard
Material - Core
Iron Powder
Size / Dimension
0.925" L x 0.925" W (23.50mm x 23.50mm)
DC Resistance (DCR)
180mOhm Max
Current Rating (Amps)
900 mA
Height - Seated (Max)
0.541" (13.75mm)
Operating Temperature
-40°C ~ 125°C
Inductance Frequency - Test
20 kHz
| Attribute | Value |
|---|---|
| Mfr | Amgis, LLC |
| Type | Toroidal |
| Series | SW |
| Packaging | Tape & Reel (TR) |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Inductance | 330 µH |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Iron Powder |
| Size / Dimension | 0.925" L x 0.925" W (23.50mm x 23.50mm) |
| DC Resistance (DCR) | 180mOhm Max |
| Current Rating (Amps) | 900 mA |
| Height - Seated (Max) | 0.541" (13.75mm) |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 20 kHz |
