Step1: Product

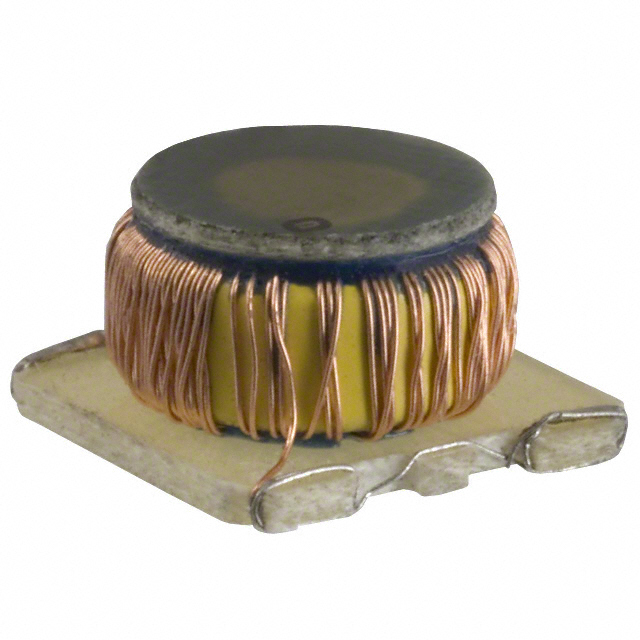

Amgis, LLC SWS-0.84-26
Image shown is a representation only
Manufacturer
Manufacturer No
SWS-0.84-26
Package
Nonstandard
Packaging
Tape & Reel (TR)
Description
FIXED IND 26UH 840MA 200 MOHM
Detailed Description
26 µH Unshielded Toroidal Inductor 840 mA 200mOhm Nonstandard
DataSheet
Mfr
Amgis, LLC
Type
Toroidal
Series
SW
Packaging
Tape & Reel (TR)
Shielding
Unshielded
Tolerance
±20%
Inductance
26 µH
Part Status
Obsolete
Mounting Type
Surface Mount
Package / Case
Nonstandard
Material - Core
Iron Powder
Size / Dimension
0.394" L x 0.394" W (10.00mm x 10.00mm)
DC Resistance (DCR)
200mOhm
Current Rating (Amps)
840 mA
Height - Seated (Max)
0.266" (6.75mm)
Operating Temperature
-40°C ~ 125°C
Inductance Frequency - Test
10 kHz
| Attribute | Value |
|---|---|
| Mfr | Amgis, LLC |
| Type | Toroidal |
| Series | SW |
| Packaging | Tape & Reel (TR) |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Inductance | 26 µH |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Iron Powder |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| DC Resistance (DCR) | 200mOhm |
| Current Rating (Amps) | 840 mA |
| Height - Seated (Max) | 0.266" (6.75mm) |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
