Step1: Product
American Zettler AZSR165-1AE-12DL

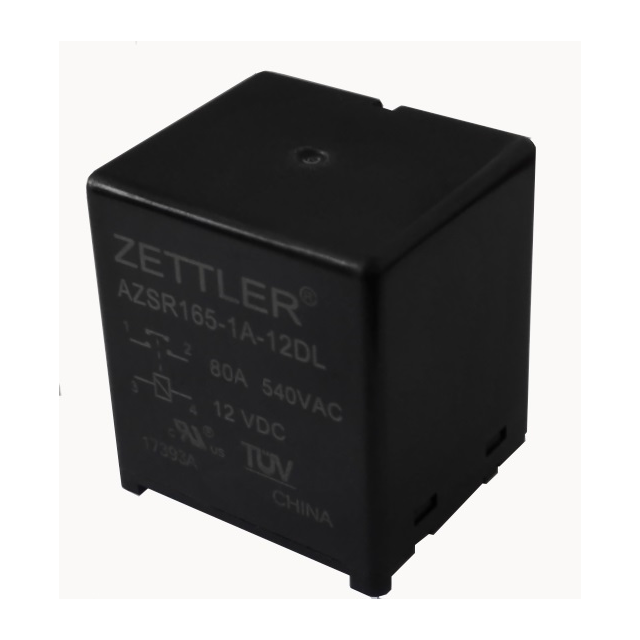

Image shown is a representation only
Manufacturer
Manufacturer No
AZSR165-1AE-12DL
Packaging
Tube
Description
RELAY EV CHG SOLAR SPST 80A 12V
Detailed Description
EV Charging, Solar Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
DataSheet
Mfr
American Zettler
Series
AZSR165
Coil Type
Non Latching
Packaging
Tube
Relay Type
EV Charging, Solar
Part Status
Active
Coil Current
184.6 mA
Coil Voltage
12VDC
Contact Form
SPST-NO (1 Form A)
Operate Time
40 ms
Release Time
20 ms
Mounting Type
Through Hole
Approval Agency
TUV, UL
Coil Insulation
Class F
Coil Resistance
65 Ohms
Contact Material
Silver Tin Oxide (AgSnO)
Switching Voltage
690VAC - Max
Termination Style
PC Pin
Base Product Number
AZSR165
Load - Max Switching
55200VA
Must Operate Voltage
9 VDC
Must Release Voltage
0.6 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
80 A
| Attribute | Value |
|---|---|
| Mfr | American Zettler |
| Series | AZSR165 |
| Coil Type | Non Latching |
| Packaging | Tube |
| Relay Type | EV Charging, Solar |
| Part Status | Active |
| Coil Current | 184.6 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Operate Time | 40 ms |
| Release Time | 20 ms |
| Mounting Type | Through Hole |
| Approval Agency | TUV, UL |
| Coil Insulation | Class F |
| Coil Resistance | 65 Ohms |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Switching Voltage | 690VAC - Max |
| Termination Style | PC Pin |
| Base Product Number | AZSR165 |
| Load - Max Switching | 55200VA |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 0.6 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 80 A |
