Step1: Product
American Zettler AZSR1200-1AE-24D

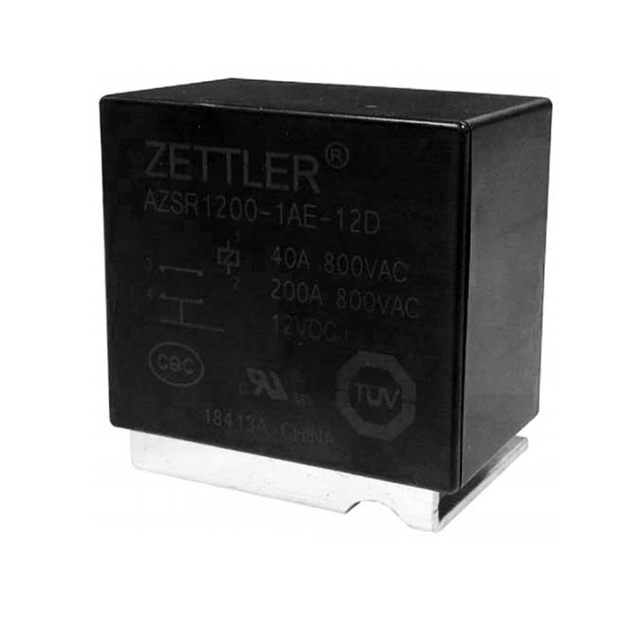

Image shown is a representation only
Manufacturer
Manufacturer No
AZSR1200-1AE-24D
Packaging
Tube
Description
RELAY EV CHG SOLAR SPST 200A 24V
Detailed Description
EV Charging, Solar Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
DataSheet
Mfr
American Zettler
Series
AZSR1200
Coil Type
Non Latching
Packaging
Tube
Relay Type
EV Charging, Solar
Part Status
Active
Coil Current
125 mA
Coil Voltage
24VDC
Contact Form
SPST-NO (1 Form A)
Operate Time
40 ms
Release Time
15 ms
Mounting Type
Through Hole
Approval Agency
TUV, UL
Coil Insulation
Class F
Coil Resistance
192 Ohms
Contact Material
Silver Tin Oxide (AgSnO)
Switching Voltage
920VAC - Max
Termination Style
PC Pin
Base Product Number
AZSR1200
Load - Max Switching
110400VA
Must Operate Voltage
18 VDC
Must Release Voltage
1.2 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
200 A
| Attribute | Value |
|---|---|
| Mfr | American Zettler |
| Series | AZSR1200 |
| Coil Type | Non Latching |
| Packaging | Tube |
| Relay Type | EV Charging, Solar |
| Part Status | Active |
| Coil Current | 125 mA |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Operate Time | 40 ms |
| Release Time | 15 ms |
| Mounting Type | Through Hole |
| Approval Agency | TUV, UL |
| Coil Insulation | Class F |
| Coil Resistance | 192 Ohms |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Switching Voltage | 920VAC - Max |
| Termination Style | PC Pin |
| Base Product Number | AZSR1200 |
| Load - Max Switching | 110400VA |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 1.2 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 200 A |
