American Zettler AZ2100-1C-24DEF

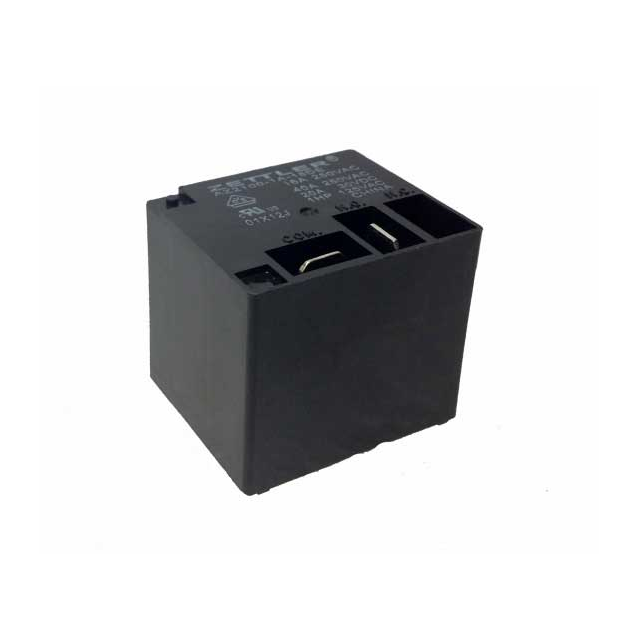

Image shown is a representation only
Manufacturer
Manufacturer No
AZ2100-1C-24DEF
Packaging
Tray
Description
RELAY GEN PURPOSE SPDT 30A 24V
Detailed Description
General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
DataSheet
Mfr
American Zettler
Series
AZ2100
Coil Type
Non Latching
Packaging
Tray
Relay Type
General Purpose
Part Status
Active
Seal Rating
Sealed - Fully
Coil Current
36.4 mA
Coil Voltage
24VDC
Contact Form
SPDT (1 Form C)
Operate Time
15 ms
Release Time
10 ms
Mounting Type
Through Hole
Approval Agency
cURus, VDE
Coil Insulation
Class F
Coil Resistance
660 Ohms
Contact Material
Silver Cadmium Oxide (AgCdO)
Switching Voltage
277VAC, 30VDC - Max
Termination Style
PC Pin, Quick Connect - 0.250" (6.3mm)
Base Product Number
AZ2100-1C
Load - Max Switching
12000VA, 1200W
Must Operate Voltage
18 VDC
Must Release Voltage
2.4 VDC
Operating Temperature
-55°C ~ 85°C
Contact Rating (Current)
40 A
| Attribute | Value |
|---|---|
| Mfr | American Zettler |
| Series | AZ2100 |
| Coil Type | Non Latching |
| Packaging | Tray |
| Relay Type | General Purpose |
| Part Status | Active |
| Seal Rating | Sealed - Fully |
| Coil Current | 36.4 mA |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Mounting Type | Through Hole |
| Approval Agency | cURus, VDE |
| Coil Insulation | Class F |
| Coil Resistance | 660 Ohms |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Switching Voltage | 277VAC, 30VDC - Max |
| Termination Style | PC Pin, Quick Connect - 0.250" (6.3mm) |
| Base Product Number | AZ2100-1C |
| Load - Max Switching | 12000VA, 1200W |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature | -55°C ~ 85°C |
| Contact Rating (Current) | 40 A |
