Step1: Product

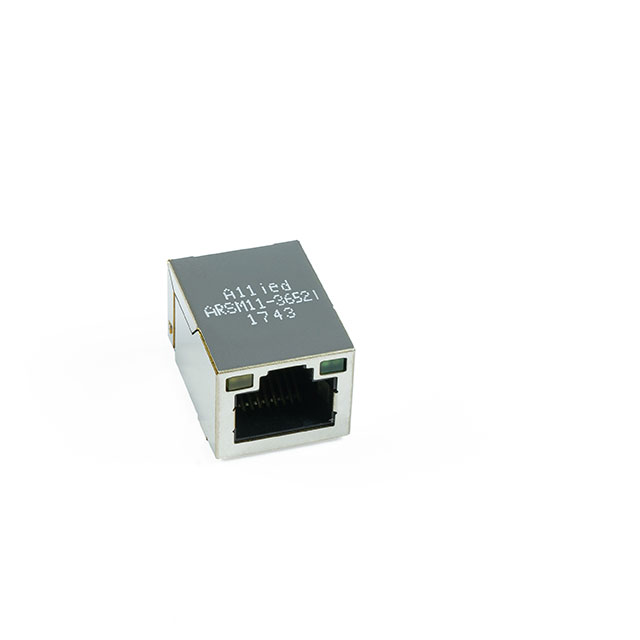

Allied Components International ARSM11-3652I
Image shown is a representation only
Manufacturer
Manufacturer No
ARSM11-3652I
Packaging
Tape & Reel (TR)
Description
CONN JACK 1PORT SURFACE MOUNT
Detailed Description
1 Port RJ45 Surface Mount 10/100 Base-T
Datasheet
Features
Solder Retention
LED Color
Yellow - Green
Packaging
Tape & Reel (TR)
Shielding
Shielded
Orientation
90° Angle (Right)
Termination
Solder
Applications
10/100 Base-T
Manufacturer
Allied Components International
Mounting Type
Surface Mount
Tab Direction
Up
Connector Type
RJ45
Contact Finish
Nickel
Number of Rows
1
Number of Ports
1
Shield Material
Brass
Contact Material
Phosphor Bronze
Housing Material
Polyester, Glass Filled
Height Above Board
0.549" (13.95mm)
Operating Temperature
-40°C ~ 85°C
Contact Finish Thickness
40.0µin (1.02µm)
Number of Cores per Jack
4
| Attribute | Value |
|---|---|
| Features | Solder Retention |
| LED Color | Yellow - Green |
| Packaging | Tape & Reel (TR) |
| Shielding | Shielded |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Applications | 10/100 Base-T |
| Manufacturer | Allied Components International |
| Mounting Type | Surface Mount |
| Tab Direction | Up |
| Connector Type | RJ45 |
| Contact Finish | Nickel |
| Number of Rows | 1 |
| Number of Ports | 1 |
| Shield Material | Brass |
| Contact Material | Phosphor Bronze |
| Housing Material | Polyester, Glass Filled |
| Height Above Board | 0.549" (13.95mm) |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish Thickness | 40.0µin (1.02µm) |
| Number of Cores per Jack | 4 |
