Step1: Product

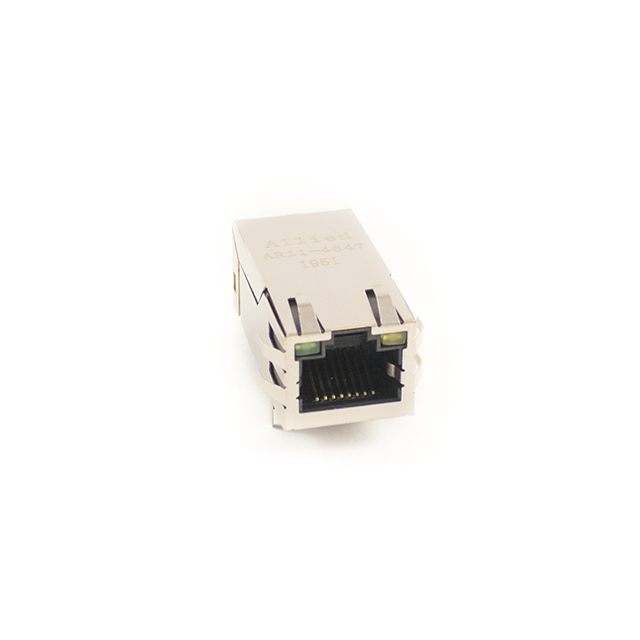

Allied Components International AR11-4647
Image shown is a representation only
Manufacturer
Manufacturer No
AR11-4647
Packaging
Tray
Description
CONN JACK 1PORT PCB
Detailed Description
1 Port RJ45 Through Hole 10/100/1000 Base-T
Datasheet
Features
Board Guide
LED Color
Green - Yellow
Packaging
Tray
Shielding
Shielded, EMI Finger
Orientation
90° Angle (Right)
Termination
Solder
Applications
10/100/1000 Base-T
Manufacturer
Allied Components International
Mounting Type
Through Hole
Tab Direction
Up
Connector Type
RJ45
Contact Finish
Gold
Number of Rows
1
Number of Ports
1
Shield Material
Copper Alloy
Contact Material
Copper Alloy
Housing Material
Thermoplastic
Height Above Board
0.531" (13.49mm)
Operating Temperature
0°C ~ 70°C
Contact Finish Thickness
6.00µin (0.152µm)
Number of Cores per Jack
8
| Attribute | Value |
|---|---|
| Features | Board Guide |
| LED Color | Green - Yellow |
| Packaging | Tray |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Applications | 10/100/1000 Base-T |
| Manufacturer | Allied Components International |
| Mounting Type | Through Hole |
| Tab Direction | Up |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Number of Rows | 1 |
| Number of Ports | 1 |
| Shield Material | Copper Alloy |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| Height Above Board | 0.531" (13.49mm) |
| Operating Temperature | 0°C ~ 70°C |
| Contact Finish Thickness | 6.00µin (0.152µm) |
| Number of Cores per Jack | 8 |
