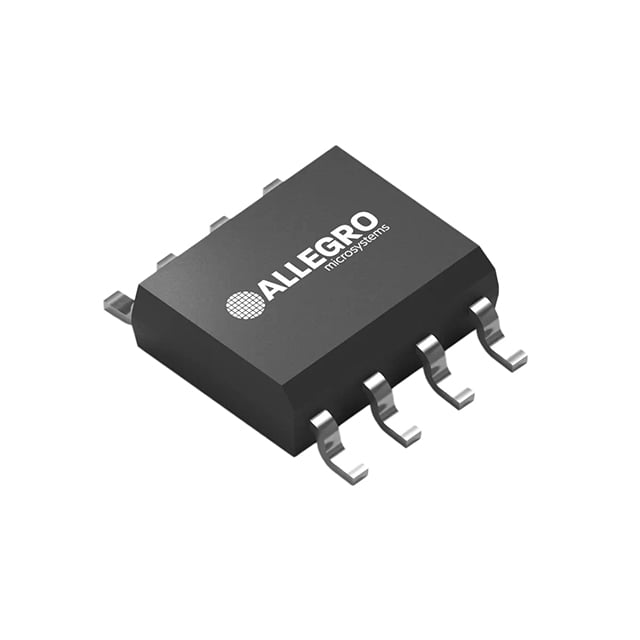

Allegro MicroSystems CT4022-H12BSN8
Image shown is a representation only
Manufacturer
Manufacturer No
CT4022-H12BSN8
Package
8-SOIC (0.154", 3.90mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CURRENT SENSOR MR 12A 8-SOIC
Detailed Description
Current Sensor 12A 1 Channel Magnetoresistive Bidirectional 8-SOIC (0.154", 3.90mm Width)
DataSheet
Mfr
Allegro MicroSystems
Output
Ratiometric, Voltage
Series
XtremeSense™
Accuracy
±3%
Frequency
DC ~ 500kHz
Linearity
±0.1%
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Sensitivity
166.7mV/A
Sensor Type
Magnetoresistive
Polarization
Bidirectional
For Measuring
DC
Mounting Type
Surface Mount
Response Time
500ns
Package / Case
8-SOIC (0.154", 3.90mm Width)
Voltage - Supply
3V ~ 3.6V, 4.5V ~ 5.5V
Current - Sensing
12A
Number of Channels
1
Operating Temperature
-40°C ~ 125°C
Current - Supply (Max)
7mA
Supplier Device Package
8-SOIC
| Attribute | Value |
|---|---|
| Mfr | Allegro MicroSystems |
| Output | Ratiometric, Voltage |
| Series | XtremeSense™ |
| Accuracy | ±3% |
| Frequency | DC ~ 500kHz |
| Linearity | ±0.1% |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Sensitivity | 166.7mV/A |
| Sensor Type | Magnetoresistive |
| Polarization | Bidirectional |
| For Measuring | DC |
| Mounting Type | Surface Mount |
| Response Time | 500ns |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Voltage - Supply | 3V ~ 3.6V, 4.5V ~ 5.5V |
| Current - Sensing | 12A |
| Number of Channels | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply (Max) | 7mA |
| Supplier Device Package | 8-SOIC |
