Step1: Product

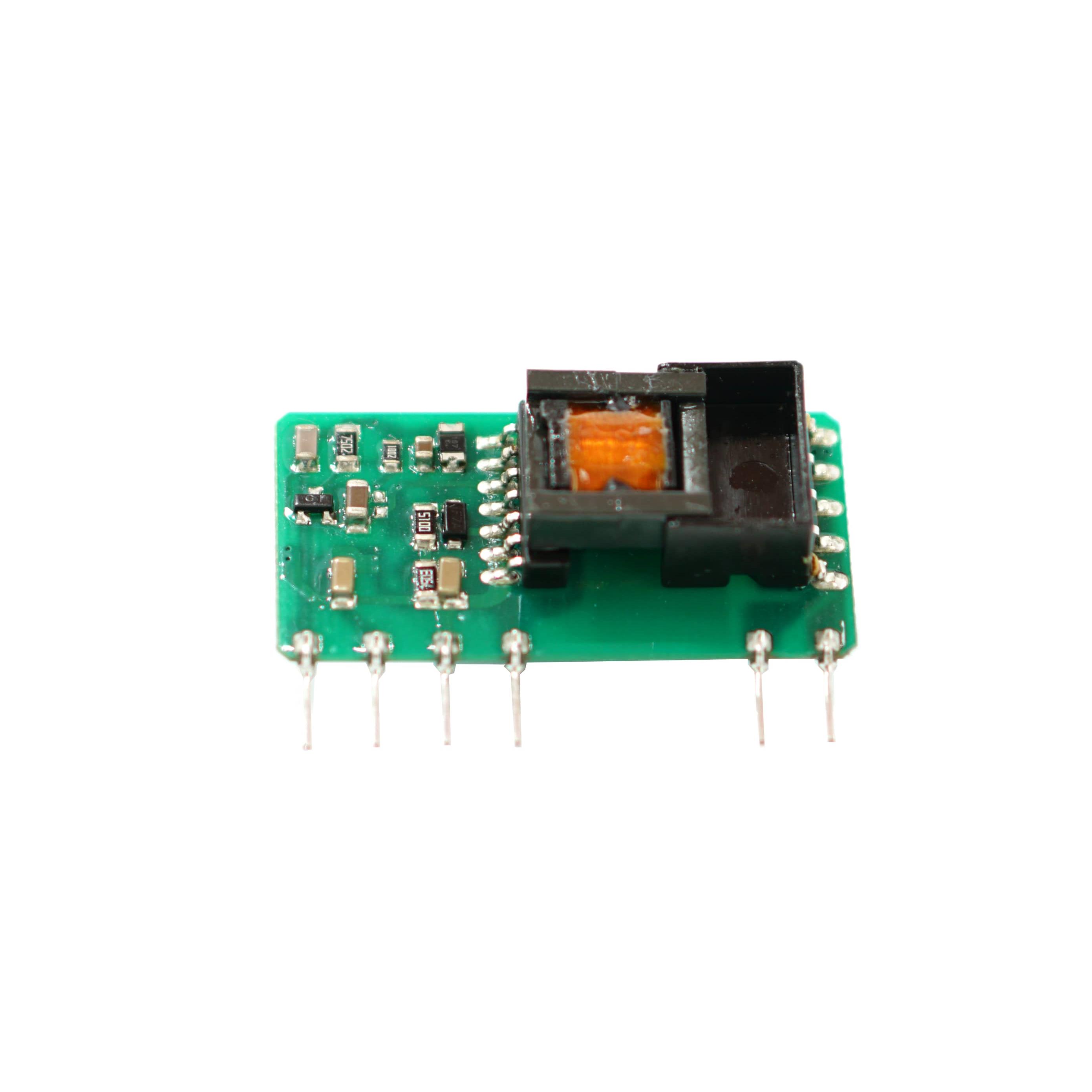

aimtec AMEOF5-9SBJZ
Image shown is a representation only
Manufacturer
Manufacturer No
AMEOF5-9SBJZ
Package
16-SIP Module, 6 Leads
Packaging
Box
Description
AC/DC CONVERTER 9V 5W
Detailed Description
Open Frame AC DC Converters 1 Output 9V 560mA 90 ~ 528 VAC, 100 ~ 745 VDC Input
DataSheet
Type
Open Frame
Series
AMEOF5-BJZ (5W)
Weight
0.017 lb (7.50 g)
Packaging
Box
Efficiency
70%
Part Status
Active
Applications
ITE (Commercial)
Manufacturer
aimtec
Mounting Type
Through Hole
Power (Watts)
5 W
Package / Case
16-SIP Module, 6 Leads
Line Regulation
±1%
Load Regulation
±1%
Voltage - Input
90 ~ 528 VAC, 100 ~ 745 VDC
Size / Dimension
1.75" L x 0.51" W x 0.94" H (44.5mm x 13.0mm x 24.0mm)
Number of Outputs
1
Voltage - Output 1
9V
Base Product Number
AMEOF5
Operating Temperature
-40°C ~ 85°C (With Derating)
Current - Output (Max)
560mA
| Attribute | Value |
|---|---|
| Type | Open Frame |
| Series | AMEOF5-BJZ (5W) |
| Weight | 0.017 lb (7.50 g) |
| Packaging | Box |
| Efficiency | 70% |
| Part Status | Active |
| Applications | ITE (Commercial) |
| Manufacturer | aimtec |
| Mounting Type | Through Hole |
| Power (Watts) | 5 W |
| Package / Case | 16-SIP Module, 6 Leads |
| Line Regulation | ±1% |
| Load Regulation | ±1% |
| Voltage - Input | 90 ~ 528 VAC, 100 ~ 745 VDC |
| Size / Dimension | 1.75" L x 0.51" W x 0.94" H (44.5mm x 13.0mm x 24.0mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 9V |
| Base Product Number | AMEOF5 |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Current - Output (Max) | 560mA |
