Step1: Product
aimtec AMEOF10-05S277NZ

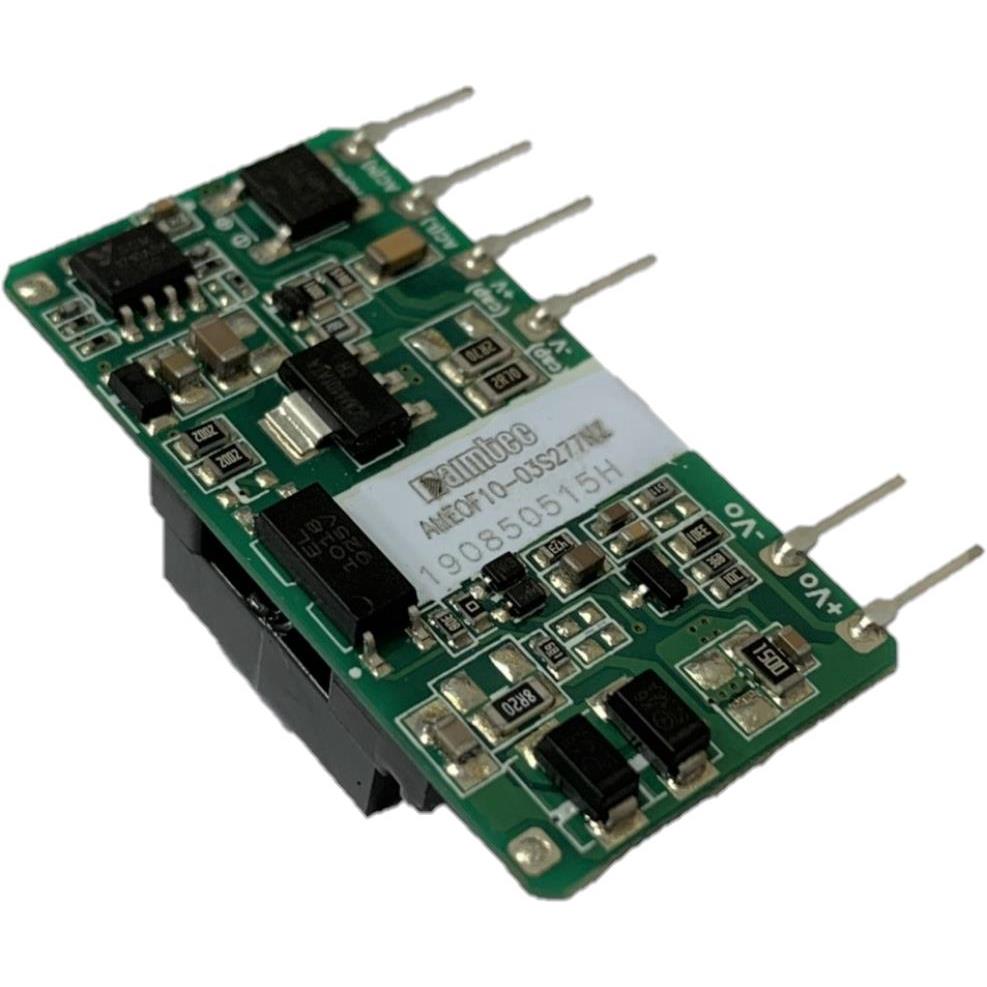

Image shown is a representation only
Manufacturer
Manufacturer No
AMEOF10-05S277NZ
Package
16-SIP Module, 6 Leads
Packaging
Box
Description
AC/DC CONVERTER 5V 10W
Detailed Description
Open Frame AC DC Converters 1 Output 5V 2A 85 ~ 305 VAC, 100 ~ 430 VDC Input
DataSheet
Type
Open Frame
Series
AMEOF10-277NZ (10W)
Packaging
Box
Efficiency
76%
Part Status
Active
Applications
Household Appliances, ITE (Commercial)
Manufacturer
aimtec
Mounting Type
Through Hole
Power (Watts)
10 W
Package / Case
16-SIP Module, 6 Leads
Line Regulation
±0.5%
Load Regulation
±1%
Voltage - Input
85 ~ 305 VAC, 100 ~ 430 VDC
Size / Dimension
1.75" L x 0.59" W x 0.94" H (44.5mm x 15.0mm x 24.0mm)
Number of Outputs
1
Voltage - Output 1
5V
Base Product Number
AMEOF10
Operating Temperature
-40°C ~ 85°C (With Derating)
Current - Output (Max)
2A
| Attribute | Value |
|---|---|
| Type | Open Frame |
| Series | AMEOF10-277NZ (10W) |
| Packaging | Box |
| Efficiency | 76% |
| Part Status | Active |
| Applications | Household Appliances, ITE (Commercial) |
| Manufacturer | aimtec |
| Mounting Type | Through Hole |
| Power (Watts) | 10 W |
| Package / Case | 16-SIP Module, 6 Leads |
| Line Regulation | ±0.5% |
| Load Regulation | ±1% |
| Voltage - Input | 85 ~ 305 VAC, 100 ~ 430 VDC |
| Size / Dimension | 1.75" L x 0.59" W x 0.94" H (44.5mm x 15.0mm x 24.0mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 5V |
| Base Product Number | AMEOF10 |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Current - Output (Max) | 2A |
